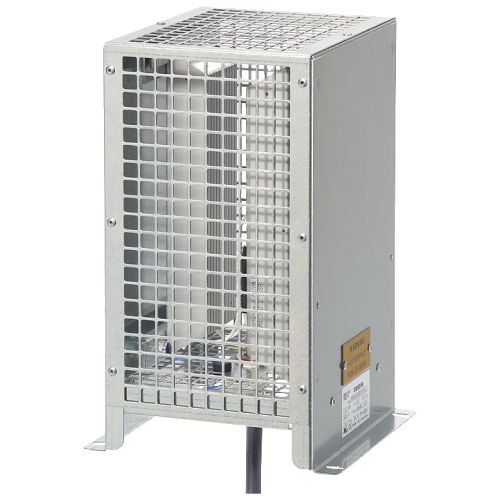

Siemens Braking resistor for matched SINAMICS V20 converters
6SE6400-4BD21-2DA0
Braking resistor for matched SINAMICS V20 converters, 27 Ω, 1,200 W continuous power.
- Application
- Variable speed drives
- Accessory type
- Braking resistors
- Option
- 27 Ω / 1,200 W
Product specification
6SE6400-4BD21-2DA0
Braking resistor for matched SINAMICS V20 converters, 27 Ω, 1,200 W continuous power.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6SE6400-4BD21-2DA0 — specifications & documents
Braking resistor for matched SINAMICS V20 converters, 27 Ω, 1,200 W continuous power.
| Accessory type | Braking resistors |
|---|---|
| Resistance | 27 Ω ±10% |
| Continuous power | 1,200 W |
| Peak power at 5% duty | 24 kW |
| Duty cycle | Maximum 5%; check application braking duty |
