Siemens Braking resistor for matched SINAMICS V20 and G120C converters
6SL3201-0BE21-8AA0

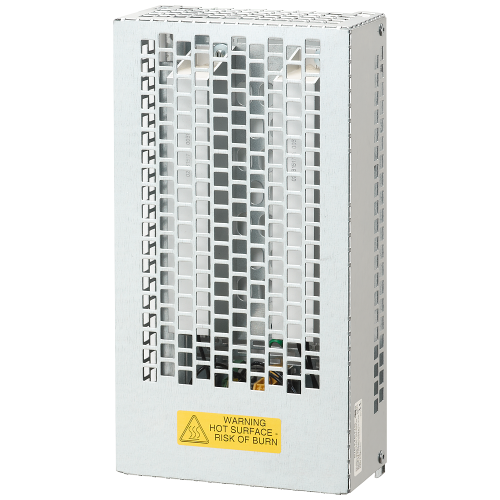

Braking resistor for matched SINAMICS V20 and G120C converters, 75 Ω, 375 W continuous power.
- Application
- Variable speed drives
- Accessory type
- Braking resistors
- Option
- 75 Ω / 375 W
Product specification
6SL3201-0BE21-8AA0
Braking resistor for matched SINAMICS V20 and G120C converters, 75 Ω, 375 W continuous power.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6SL3201-0BE21-8AA0 — specifications & documents
Braking resistor for matched SINAMICS V20 and G120C converters, 75 Ω, 375 W continuous power.
| Accessory type | Braking resistors |
|---|---|
| Resistance | 75 Ω ±10% |
| Continuous power | 375 W |
| Peak power at 5% duty | 7.5 kW |
| Duty cycle | Maximum 5%; check application braking duty |
Fits these parts
- 6SL3210-5BE25-5CV1 SINAMICS V20 drive, 5.5 kW, 400 V three phase, FSC, integrated C3 EMC filter.
- 6SL3210-5BE27-5CV1 SINAMICS V20 drive, 7.5 kW, 400 V three phase, FSC, integrated C3 EMC filter.
- 6SL3210-1KE21-3AB1 SINAMICS G120C drive, 4 kW high overload / 5.5 kW low overload, 400 V three phase, USS / Modbus RTU, integrated Class A filter.
- 6SL3210-1KE21-3AF1 SINAMICS G120C drive, 4 kW high overload / 5.5 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
- 6SL3210-1KE21-7AB1 SINAMICS G120C drive, 5.5 kW high overload / 7.5 kW low overload, 400 V three phase, USS / Modbus RTU, integrated Class A filter.
- 6SL3210-1KE21-7AF1 SINAMICS G120C drive, 5.5 kW high overload / 7.5 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
