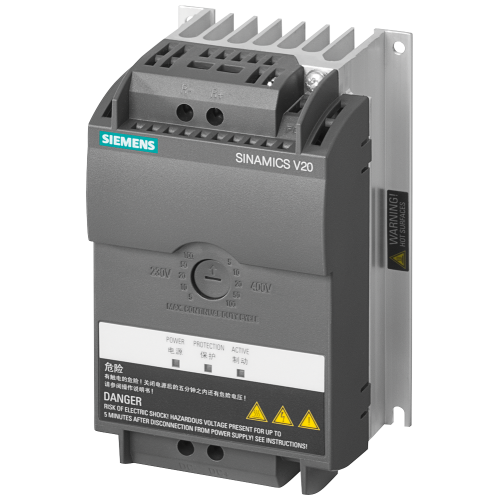

Siemens SINAMICS V20 external braking module for 230 V drives
6SL3201-2AD20-8VA0
SINAMICS V20 external braking module for 230 V drives, frames FSAA–FSAD.
- Application
- Variable speed drives
- Accessory type
- Braking
- Option
- External braking module
Product specification
6SL3201-2AD20-8VA0
SINAMICS V20 external braking module for 230 V drives, frames FSAA–FSAD.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6SL3201-2AD20-8VA0 — specifications & documents
SINAMICS V20 external braking module for 230 V drives, frames FSAA–FSAD.
| Accessory type | Braking |
|---|---|
| Compatible frames | FSAA, FSAB, FSAC, FSAD |
| Requires | Separately selected braking resistor |
| 400 V drives | FSA–FSE already include a braking chopper |
Fits these parts
- 6SL3210-5BB11-2BV1 SINAMICS V20 drive, 0.12 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB12-5BV1 SINAMICS V20 drive, 0.25 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB13-7BV1 SINAMICS V20 drive, 0.37 kW, 230 V single phase, FSAA, integrated C1 EMC filter.
- 6SL3210-5BB15-5BV1 SINAMICS V20 drive, 0.55 kW, 230 V single phase, FSAB, integrated C1 EMC filter.
- 6SL3210-5BB17-5BV1 SINAMICS V20 drive, 0.75 kW, 230 V single phase, FSAB, integrated C1 EMC filter.
- 6SL3210-5BB21-1BV1 SINAMICS V20 drive, 1.1 kW, 230 V single phase, FSAC, integrated C1 EMC filter.
- 6SL3210-5BB21-5BV1 SINAMICS V20 drive, 1.5 kW, 230 V single phase, FSAC, integrated C1 EMC filter.
- 6SL3210-5BB22-2BV1 SINAMICS V20 drive, 2.2 kW, 230 V single phase, FSAD, integrated C1 EMC filter.
- 6SL3210-5BB23-0BV1 SINAMICS V20 drive, 3 kW, 230 V single phase, FSAD, integrated C1 EMC filter.
