Siemens SINAMICS V20 drive
6SL3210-5BE31-1CV0

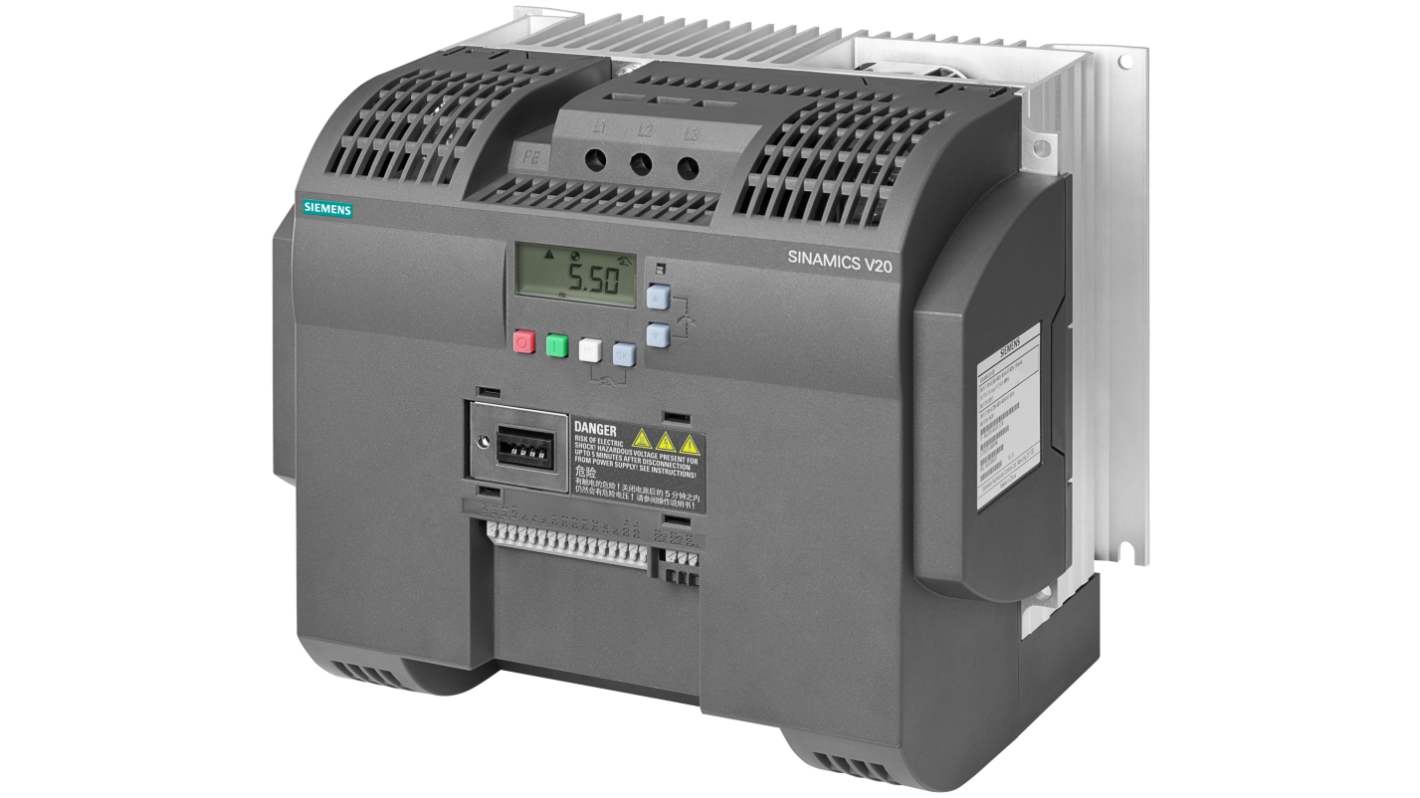

SINAMICS V20 drive, 11 kW, 400 V three phase, FSD, integrated C3 EMC filter.
- Drive range
- V20
- Supply voltage
- 400 V three phase
- Motor rating
- 11 kW
Product specification
6SL3210-5BE31-1CV0
SINAMICS V20 drive, 11 kW, 400 V three phase, FSD, integrated C3 EMC filter.
Dimensions & specifications
Filtered core range. Select by motor current and overload duty; HO and LO ratings are shown separately. Check EMC, installation clearances, operating conditions and motor cable requirements.
Accessories & related parts
6SL3210-5BE31-1CV0 — specifications & documents
SINAMICS V20 drive, 11 kW, 400 V three phase, FSD, integrated C3 EMC filter.
| Supply voltage | 380–480 V AC, 3 phase |
|---|---|
| Motor rating (high overload) | 11 kW |
| Output current (HO) | 25 A at 400 V |
| Frame size | FSD |
| EMC filter | Integrated C3 |
| Overload | 150% for 60 seconds in a 300-second cycle |
| Operator panel | Built-in BOP |
| Communication | USS / Modbus RTU |
| Protection | IP20 / UL open type |
Related parts
- 6SL3255-0VA00-4BA1 SINAMICS V20 external basic operator panel for remote operation.
- 6SL3255-0VA00-2AA1 SINAMICS V20 BOP interface to connect the external operator panel.
- 6SL3255-0VA00-5AA0 SINAMICS V20 Smart Access module for wireless commissioning, parameter setting and diagnostics.
- 6SL3255-0VE00-0UA1 SINAMICS V20 Parameter Loader for backing up and transferring drive parameters.
- 6SL3266-1AD00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSD.
- 6SL3202-0AE23-8CA0 Output reactor listed by Siemens for matching SINAMICS V20 and G120C converters.
- 6SL3256-0VE00-6AA0 SINAMICS V20 I/O extension module, adding 2 digital inputs and 2 relay outputs.
- 6SL3201-0BE23-8AA0 Braking resistor for matched SINAMICS V20 and G120C converters, 30 Ω, 925 W continuous power.
