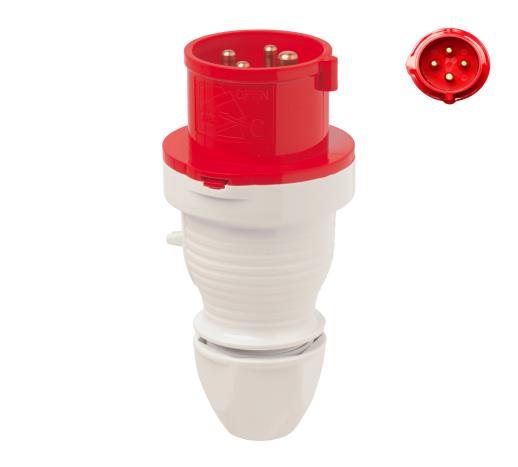

Walther Industrial plug 16 A 400 / 415 V 3P+E
210406
Industrial plug 16 A 400 / 415 V 3P+E, IP44, 6h.
- Product type
- Industrial plug
- Current
- 16 A
- Voltage
- 400 / 415 V · 3P+E
Product specification
210406
Industrial plug 16 A 400 / 415 V 3P+E, IP44, 6h.
Dimensions & specifications
Core IP44 range: 16 A or 32 A; 230 V 2P+E or 400/415 V 3P+E (4-pin, no neutral) / 3P+N+E (5-pin, with neutral). Walther plugs and sockets; Gewiss interlocked wall sockets with backbox. Match current, voltage and poles.
Accessories & related parts
210406 — specifications & documents
Industrial plug 16 A 400 / 415 V 3P+E, IP44, 6h.
| Manufacturer | Walther |
|---|---|
| Product type | Industrial plug |
| Current (IEC) | 16 A |
| Voltage | 400 / 415 V |
| Poles | 3P+E |
| Pins | 4 |
| Protection | IP44 |
| Colour | Blue |
| Clock position | 6h |
| Notes | Screw terminals; PA6 housing. Straight connection with external cable gland. |
