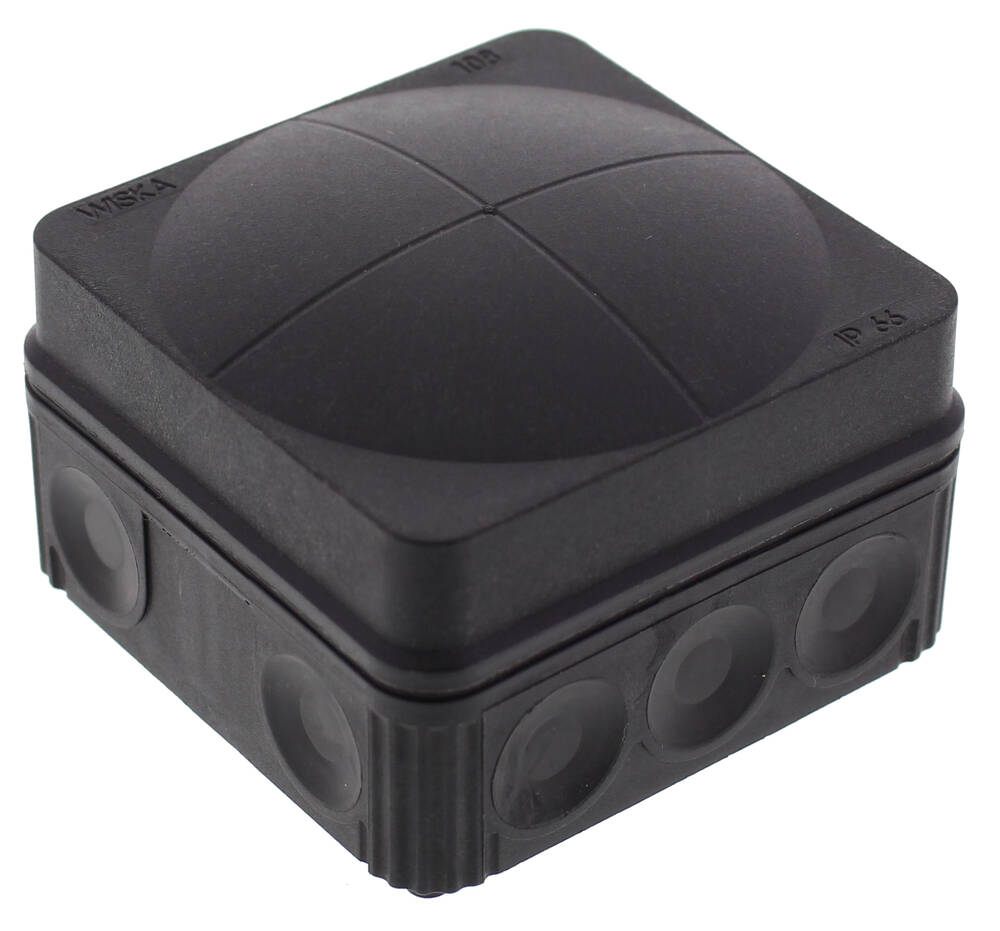

WISKA COMBI 108 BK empty polypropylene junction box in black. 76 × 76 × 51 mm external dimensions (L × W × H). Terminals supplied separately
10061999
COMBI 108 BK empty polypropylene junction box in black. 76 × 76 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
- Size
- COMBI 108 · 76 × 76 × 51 mm
- Colour
- Black
Product specification
COMBI 108 BK empty polypropylene junction box in black. 76 × 76 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
Dimensions & specifications
Dimensions are external L × W × H. Terminal blocks are separate. COMBI 108 is IP66; other listed models are IP66 through membrane entries or IP67 with ESKV cable glands in the threaded entries.
Accessories & related parts
10061999 — specifications & documents
COMBI 108 BK empty polypropylene junction box in black. 76 × 76 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
| Manufacturer type | COMBI 108 BK |
|---|---|
| Manufacturer order number | 10061999 |
| Range | COMBI 108 |
| External dimensions (L × W × H) | 76 × 76 × 51 mm |
| Colour | Black · RAL 9005 |
| Material | Polypropylene |
| Seal material | TPE |
| Protection class | IP66 |
| Entry protection | IP66 using the integral self-sealing membranes. |
| Terminal block | Not included |
| Quote quantity basis | Individual empty junction boxes |
| Manufacturer outer packing quantity | 10 |
| Membrane cable diameter | 3–14 mm |
| Fixing | 2 internal openings |
| Entries | 10 side and 2 rear self-sealing membranes |
