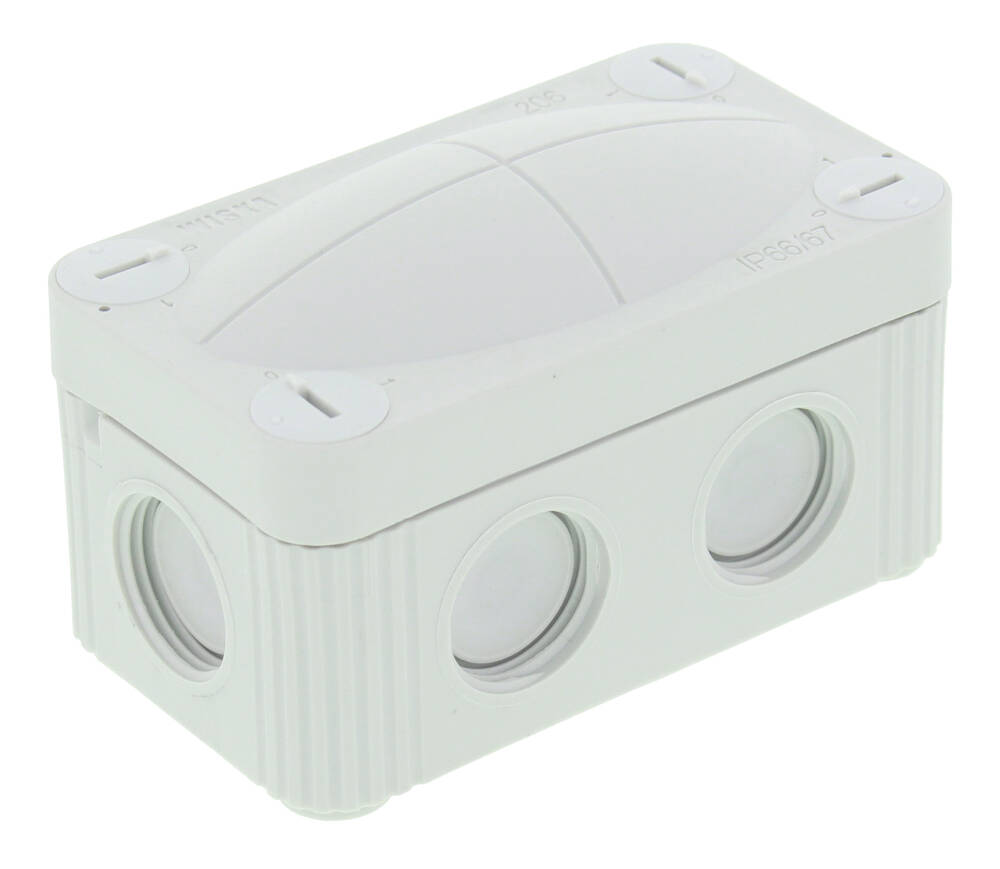

WISKA COMBI 206 LG empty polypropylene junction box in grey. 85 × 49 × 51 mm external dimensions (L × W × H). Terminals supplied separately
10109569
COMBI 206 LG empty polypropylene junction box in grey. 85 × 49 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
- Size
- COMBI 206 · 85 × 49 × 51 mm
- Colour
- Grey
Product specification
COMBI 206 LG empty polypropylene junction box in grey. 85 × 49 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
Dimensions & specifications
Dimensions are external L × W × H. Terminal blocks are separate. COMBI 108 is IP66; other listed models are IP66 through membrane entries or IP67 with ESKV cable glands in the threaded entries.
Accessories & related parts
10109569 — specifications & documents
COMBI 206 LG empty polypropylene junction box in grey. 85 × 49 × 51 mm external dimensions (L × W × H). Terminals supplied separately.
| Manufacturer type | COMBI 206 LG |
|---|---|
| Manufacturer order number | 10109569 |
| Range | COMBI 206 |
| External dimensions (L × W × H) | 85 × 49 × 51 mm |
| Colour | Grey · RAL 7035 |
| Material | Polypropylene |
| Seal material | TPE |
| Protection class | IP66 / IP67 |
| Entry protection | IP66 using membrane entries; IP67 using threaded entries with ESKV cable glands. |
| Terminal block | Not included |
| Quote quantity basis | Individual empty junction boxes |
| Manufacturer outer packing quantity | 10 |
| Membrane cable diameter | 3–12 mm |
| Fixing | 4 internal openings |
| Entries | 6 M20 threaded membrane entries and 2 rear membrane entries |
