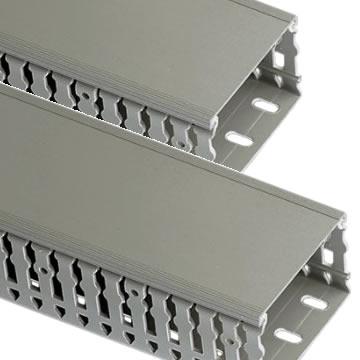

With its innovative snap to length design, Transcab is a quick and easy to install open slot panel trunking system that doesn’t compromise on quality. With its global standards approvals, Transcab is ideal for almost any industrial application. Transcab’s durable PVC body consists of 6mm gaps and 6.5mm fingers with unique support ribs, providing strength and rigidity. Fingers are easily removed by snapping at the support ribs or base level to create T-junctions without the need for a saw.
Legrand Transcab Panel Trunking Features:
Benefits
Pack Size(m) | Part Number (PVC RAL 7030) | Unit Width x Height (mm) | ||
| ||||
32 | 6360 95 | 15x25 | ||
60 | 6361 00 | 25x25 | ||
56 | 6361 05 | 40x25 | ||
40 | 6360 96 | 15x40 | ||
56 | 6361 01 | 25x40 | ||
48 | 6361 06 | 40x40 | ||
32 | 6361 11 | 60x40 | ||
24 | 6361 15 | 80x40 | ||
24 | 6361 19 | 100x40 | ||
56 | 6361 02 | 25x60 | ||
48 | 6361 07 | 40x60 | ||
32 | 6361 12 | 60x60 | ||
24 | 661 16 | 80x60 | ||
24 | 6361 20 | 100x60 | ||
40 | 6361 03 | 25x80 | ||
40 | 6361 08 | 40x80 | ||
32 | 6361 13 | 60x80 | ||
24 | 6361 17 | 80x80 | ||
16 | 6361 21 | 100x80 | ||
16 | 6361 25 | 120x80 | ||
24 | 6361 09 | 40x100 | ||
24 | 6361 14 | 6x100 | ||
20 | 6361 18 | 80x100 | ||
16 | 6361 22 | 100x100 | ||
12 | 6361 23 |
| 150x100 | |
|
|
| ||
Spare Covers |
|
| ||
PVC |
| Width (mm) | ||
|
| |||
36 | 0370 10 |
| 15 | |
36 | 0370 11 |
| 25 | |
36 | 0370 12 |
| 40 | |
36 | 0370 13 |
| 60 | |
36 | 0370 14 |
| 80 |
