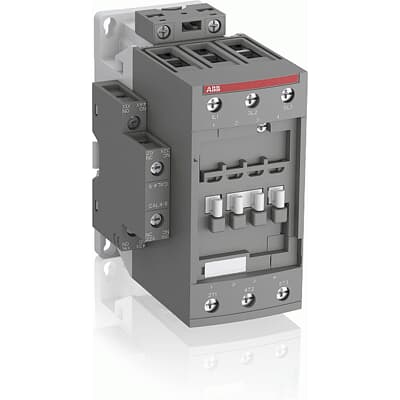

ABB AF 3-pole contactor
AF65-30-11-11
AF 3-pole contactor, 30 kW at 400 V AC-3, 65 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- Motor rating
- 30 kW
- Frame
- AF65
- Coil
- 24 V AC/DC
Product specification
AF65-30-11-11
AF 3-pole contactor, 30 kW at 400 V AC-3, 65 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
AF65-30-11-11 — specifications & documents
AF 3-pole contactor, 30 kW at 400 V AC-3, 65 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
| Motor rating at 400 V | 30 kW |
|---|---|
| Rated current (AC-3) | 65 A |
| Frame | AF65 |
| Coil voltage | 24–60 V AC (50/60 Hz) / 20–60 V DC |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO + 1 NC |
| Connection | Screw terminals |
| Surge suppression | Built in |
| ABB order code | 1SBL387001R1111 |
| Control note | Do not connect directly to a PLC transistor output; check the required interface and coil burden. |
| Width | 67 mm |
| Height | 125.5 mm |
| Depth | 111 mm |
| Manufacturer | ABB |
