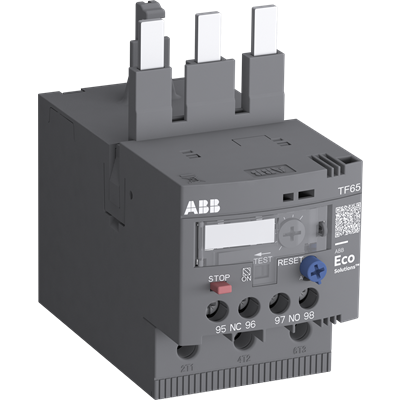

ABB TF65 thermal overload relay
TF65-60
TF65 thermal overload relay, 50–60 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- Range
- TF65
- Current setting
- 50–60 A
Product specification
TF65-60
TF65 thermal overload relay, 50–60 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
Dimensions & specifications
Choose the relay that fits the selected contactor and set it to the motor nameplate current. Frame compatibility is shown on each product.
Accessories & related parts
TF65-60 — specifications & documents
TF65 thermal overload relay, 50–60 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
| Setting range | 50–60 A |
|---|---|
| Range | TF65 |
| Trip class | 10 |
| Compatible contactors | AF40, AF52, AF65 |
| Contacts | 1 NO + 1 NC |
| Reset | Manual or automatic |
| Connection | Screw terminals |
| Mounting | Direct to compatible contactor |
| ABB order code | 1SAZ811201R1006 |
| Width | 54.9 mm |
| Height | 101.4 mm |
| Depth | 106.9 mm |
Related parts
Fits these parts
- AF52-30-11-11 AF 3-pole contactor, 22 kW at 400 V AC-3, 53 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- AF52-30-11-13 AF 3-pole contactor, 22 kW at 400 V AC-3, 53 A. 100–250 V AC/DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- AF65-30-11-11 AF 3-pole contactor, 30 kW at 400 V AC-3, 65 A. 24–60 V AC / 20–60 V DC electronic coil; 1 NO + 1 NC auxiliary contacts.
- AF65-30-11-13 AF 3-pole contactor, 30 kW at 400 V AC-3, 65 A. 100–250 V AC/DC electronic coil; 1 NO + 1 NC auxiliary contacts.
