ABB DB65 separate mounting adapter for TF65 thermal overload relays
DB65

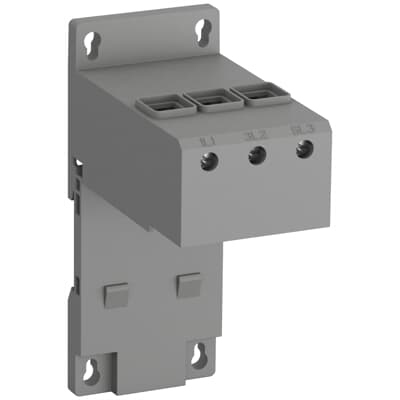

DB65 separate mounting adapter for TF65 thermal overload relays, DIN rail or screw mounting.
- Application
- Thermal overload relays
- Accessory type
- Separate mounting adapter
- Option
- TF65
Product specification
DB65
DB65 separate mounting adapter for TF65 thermal overload relays, DIN rail or screw mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
DB65 — specifications & documents
DB65 separate mounting adapter for TF65 thermal overload relays, DIN rail or screw mounting.
| Accessory type | Separate mounting adapter |
|---|---|
| Compatible relay | TF65 |
| Manufacturer order code | 1SAZ801901R1001 |
| Mounting | DIN rail or screw fixing |
Fits these parts
- TF65-28 TF65 thermal overload relay, 22–28 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-33 TF65 thermal overload relay, 25–33 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-40 TF65 thermal overload relay, 30–40 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-47 TF65 thermal overload relay, 36–47 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-53 TF65 thermal overload relay, 44–53 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-60 TF65 thermal overload relay, 50–60 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
- TF65-67 TF65 thermal overload relay, 57–67 A, trip class 10. Direct mounting on AF40, AF52, AF65 contactors.
