Nickel-plated brass EMC glands
LAPP SKINTOP MS-SC-M · M16–M32. Choose the thread size, then add its matching EMC locknut.
Product specification
53112620

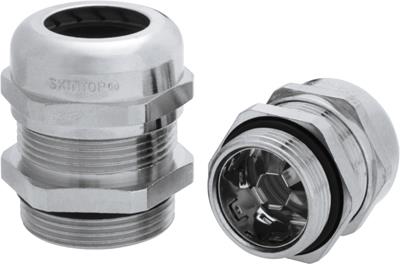

LAPP SKINTOP MS-SC-M EMC nickel-plated brass cable gland, M16 × 1.5, 4.5–10 mm cable range. Standard thread. Matching locknut ordered separately.
Dimensions & specifications
| Range | SKINTOP MS-SC-M |
|---|---|
| Material | Nickel-plated brass |
| Thread | M16 × 1.5 |
| Cable clamping range | 4.5–10 mm |
| Minimum diameter above braiding | 4 mm |
| Thread length | 7 mm |
| Spanner size | 20 mm |
| Protection | IP66 / IP68 (10 bar, 30 min) / IP69; install to manufacturer instructions |
| Temperature, moving cable | −25°C to +100°C |
| Temperature, fixed cable | −40°C to +100°C |
| EMC contact | Flexible, low-resistance copper-braid screen contact |
| Locknut | Not included; matching SKINDICHT SM-PE-M 52103310 available separately |
| Manufacturer pack quantity | 50 |
| Quote quantity basis | Individual glands |
| Installation note | Check cable and screen diameters. LAPP recommends SM-PE-M cutting-edge locknuts for painted, anodised or powder-coated housings. |
Check the cable and screen diameters against LAPP documentation. Only the matching thread-size EMC locknut is offered with each gland.
Accessories & related parts
Part numbers & documents
- 53112620 LAPP SKINTOP MS-SC-M EMC nickel-plated brass cable gland, M16 × 1.5, 4.5–10 mm cable range. Standard thread. Matching locknut ordered separately.
- 53112630 LAPP SKINTOP MS-SC-M EMC nickel-plated brass cable gland, M20 × 1.5, 7–13 mm cable range. Standard thread. Matching locknut ordered separately.
- 53112640 LAPP SKINTOP MS-SC-M EMC nickel-plated brass cable gland, M25 × 1.5, 9–17 mm cable range. Standard thread. Matching locknut ordered separately.
- 53112650 LAPP SKINTOP MS-SC-M EMC nickel-plated brass cable gland, M32 × 1.5, 11–21 mm cable range. Standard thread. Matching locknut ordered separately.
