EMC locknuts

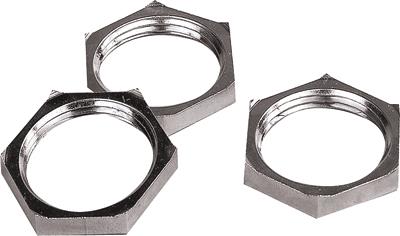

LAPP SKINDICHT SM-PE-M nickel-plated brass locknuts with cutting edges, M16–M32.
Product specification
52103310
LAPP SKINDICHT SM-PE-M EMC locknut, M16 × 1.5, nickel-plated brass with cutting edges. Matches SKINTOP MS-SC-M 53112620. Supplied individually.
Dimensions & specifications
| Range | SKINDICHT SM-PE-M |
|---|---|
| Material | Nickel-plated brass |
| Thread | M16 × 1.5 |
| Thickness | 4.7 mm |
| Spanner size | 19 mm |
| Outside diameter | 21.94 mm |
| Matching EMC gland | 53112620 |
| Manufacturer pack quantity | 100 |
| Quote quantity basis | Individual locknuts |
| Application | Inside painted, anodised or powder-coated enclosures. Cutting edges contact through the insulating coating. Follow LAPP installation instructions. |
Match the locknut thread to the gland and follow LAPP installation instructions.
Accessories & related parts
Part numbers & documents
- 52103310 LAPP SKINDICHT SM-PE-M EMC locknut, M16 × 1.5, nickel-plated brass with cutting edges. Matches SKINTOP MS-SC-M 53112620. Supplied individually.
- 52103320 LAPP SKINDICHT SM-PE-M EMC locknut, M20 × 1.5, nickel-plated brass with cutting edges. Matches SKINTOP MS-SC-M 53112630. Supplied individually.
- 52103330 LAPP SKINDICHT SM-PE-M EMC locknut, M25 × 1.5, nickel-plated brass with cutting edges. Matches SKINTOP MS-SC-M 53112640. Supplied individually.
- 52103340 LAPP SKINDICHT SM-PE-M EMC locknut, M32 × 1.5, nickel-plated brass with cutting edges. Matches SKINTOP MS-SC-M 53112650. Supplied individually.
