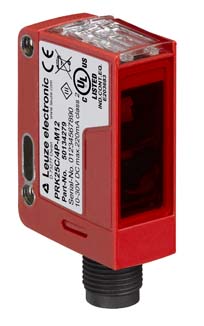

Leuze PRK25C/4P-M12 photoelectric sensor
50134279
PRK25C/4P-M12 photoelectric sensor, Rectangular, PNP light/dark switching, M12 4-pin.
- Range
- 25C
- Sensing type
- Retroreflective
- Output
- PNP light/dark switching
Product specification
50134279
PRK25C/4P-M12 photoelectric sensor, Rectangular, PNP light/dark switching, M12 4-pin.
Dimensions & specifications
Ranges depend on the target or reflector. Retroreflective sensors require a separate reflector; throughbeam applications need both transmitter and receiver. Refer to the exact product datasheet for wiring.
Accessories & related parts
50134279 — specifications & documents
PRK25C/4P-M12 photoelectric sensor, Rectangular, PNP light/dark switching, M12 4-pin.
| Sensing range | 0.05–10 m with TK(S) 100×100 reflector |
|---|---|
| Supply voltage | 10–30 V DC |
| Dimensions | 15 × 42.7 × 30 mm |
| Protection | IP67 / IP69K |
| Mounting / method | Polarised retro-reflective |
| Reflector required | TK(S) 100×100 for stated 10 m guaranteed range; reflector not included in sensor listing. |
| Model | PRK25C/4P-M12 |
| Sensor type | Photoelectric |
| Body | Rectangular |
| Output | PNP light/dark switching |
| Connection | M12 4-pin |
| Detection method | Polarised retro-reflective |
| Reflector | Separate reflector required; select the reflector for the required sensing distance. |
Related parts
- 50130691 KD U-M12-4W-V1-100 — connection cable, M12 4-pin female, right angle, 10 m, PVC.
- 50130690 KD U-M12-4W-V1-050 — connection cable, M12 4-pin female, right angle, 5 m, PVC.
- 50130688 KD U-M12-4W-V1-020 — connection cable, M12 4-pin female, right angle, 2 m, PVC.
- 50130653 KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
- 50130652 KD U-M12-4A-V1-050 — connection cable, M12 4-pin female, straight, 5 m, PVC.
- 50130648 KD U-M12-4A-V1-020 — connection cable, M12 4-pin female, straight, 2 m, PVC.
- 50139831 BT 205M — mounting device
- 50118543 BT 300M.5 — mounting bracket
- 50108300 REF 4-A-50x50 — reflective tape
- 50081283 TKS 20X40 — reflector
- 50110192 REF 6-A-50x50 — reflective tape
