Leuze KD U-M12-4A-V1-100 — connection cable
50130653

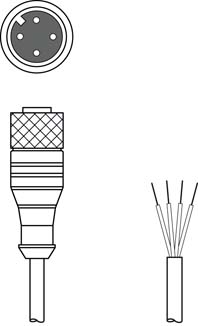

KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
- Connector
- M12 4-pin
- Cable type
- PVC cable
- Orientation
- Straight
Product specification
50130653
KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
Dimensions & specifications
Connector pin counts are separate choices. Sensor power leads, D-coded Ethernet leads and USB configuration leads are not interchangeable. Check the exact device connection and environment.
Accessories & related parts
50130653 — specifications & documents
KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
| Accessory type | Sensor lead |
|---|---|
| Model | KD U-M12-4A-V1-100 |
| Connector | M12 4-pin |
| Connection | M12 4-pin female to open end |
| Orientation | Straight |
| Length | 10 m |
| Cable type | PVC cable |
| Application | Chemical resistant |
| Operating voltage | Max. 250 V AC/DC |
| Sheathing material | PVC |
| Number of conductors | 4 Piece(s) |
| Shielded | No |
| Degree of protection | IP 65IP 67 |
Fits these parts
- 50145248 PRK5B/4X-200-M12 retroreflective photoelectric sensor, PNP output, M12 4-pin · 200 mm lead, 10–30 V DC.
- 50134215 HT25C/4P-M12 photoelectric sensor, Rectangular, PNP light/dark switching, M12 4-pin.
- 50134279 PRK25C/4P-M12 photoelectric sensor, Rectangular, PNP light/dark switching, M12 4-pin.
- 50148210 HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead.
- 50148214 HT55C.V/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.15 m (white 90%) · M12 4-pin · 200 mm lead.
- 50153571 DRT35C.3/4P-M12 35C stainless steel dynamic reference sensor · 0.05 ... 0.15 m, Max. distance to reference surface · M12 4-pin.
- 50154109 PRK35CPP/16-M12 35C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M12 4-pin.
