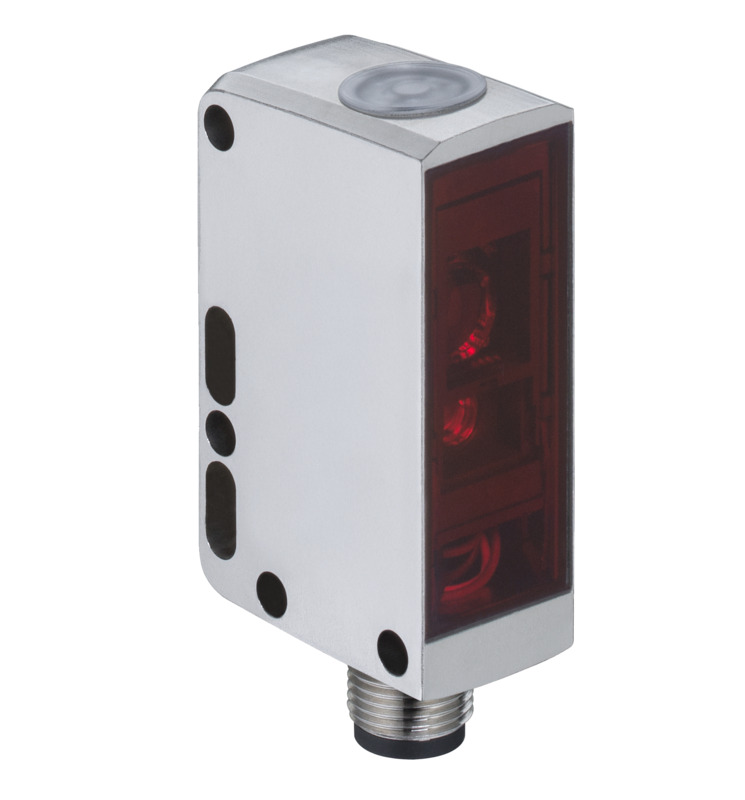

Leuze PRK35CPP/16-M12 35C stainless steel retroreflective sensor · 0.05 ... 14 m
50154109
PRK35CPP/16-M12 35C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M12 4-pin.
- Range
- 35C
- Model
- PRK35CPP/16-M12
- Connection
- M12 4-pin
Product specification
50154109
PRK35CPP/16-M12 35C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M12 4-pin.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50154109 — specifications & documents
PRK35CPP/16-M12 35C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M12 4-pin.
| Range | 35C |
|---|---|
| Model | PRK35CPP/16-M12 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M12 4-pin |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 18.8 mm x 55.3 mm x 32.4 mm |
| Housing | Stainless steel |
| Operating principle | Reflection principle |
| Light source | Power PinPoint® LED, Red |
| Switching frequency | 1,500 Hz |
| Response time | 0.2 ms |
| Operating range | 0.05 ... 14 m, With reflector TK(S) 100x100 |
| Sensing type | Retroreflective |
| Output | Transistor, Push-pull |
| Reflector | Separate compatible reflector required; confirm the exact reflector and sensing range with Swift. |
Related parts
- 50148351 KD U-M12-4A-T0-100 F+B — connection cable, M12 4-pin female, straight, 10 m, TPE.
- 50148350 KD U-M12-4A-T0-050 F+B — connection cable, M12 4-pin female, straight, 5 m, TPE.
- 50148349 KD U-M12-4A-T0-020 F+B — connection cable, M12 4-pin female, straight, 2 m, TPE.
- 50130691 KD U-M12-4W-V1-100 — connection cable, M12 4-pin female, right angle, 10 m, PVC.
- 50130690 KD U-M12-4W-V1-050 — connection cable, M12 4-pin female, right angle, 5 m, PVC.
- 50130688 KD U-M12-4W-V1-020 — connection cable, M12 4-pin female, right angle, 2 m, PVC.
- 50130653 KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
- 50130652 KD U-M12-4A-V1-050 — connection cable, M12 4-pin female, straight, 5 m, PVC.
- 50130648 KD U-M12-4A-V1-020 — connection cable, M12 4-pin female, straight, 2 m, PVC.
- 50118543 BT 300M.5 — mounting bracket
- 50120538 TKS 40x60.1.AF — reflector
- 50081283 TKS 20X40 — reflector
- 50110192 REF 6-A-50x50 — reflective tape
- 50108300 REF 4-A-50x50 — reflective tape
