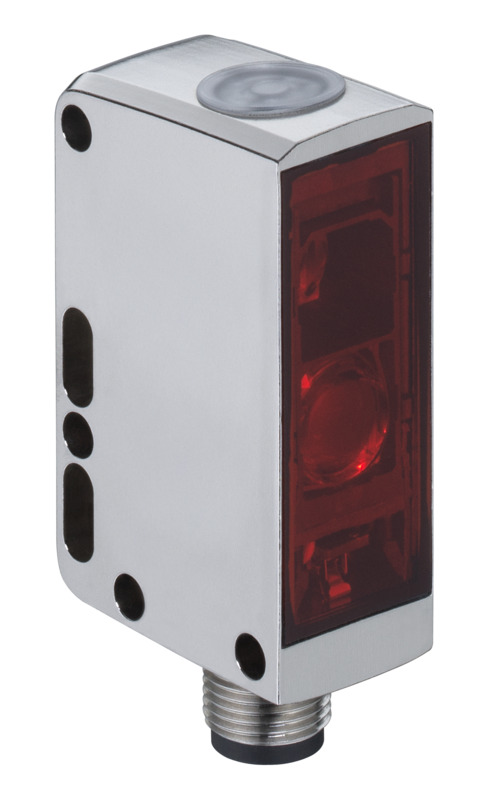

Leuze DRT35C.3/4P-M12 35C stainless steel dynamic reference sensor · 0.05 ... 0.15 m
50153571
DRT35C.3/4P-M12 35C stainless steel dynamic reference sensor · 0.05 ... 0.15 m, Max. distance to reference surface · M12 4-pin.
- Range
- 35C
- Model
- DRT35C.3/4P-M12
- Connection
- M12 4-pin
Product specification
50153571
DRT35C.3/4P-M12 35C stainless steel dynamic reference sensor · 0.05 ... 0.15 m, Max. distance to reference surface · M12 4-pin.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50153571 — specifications & documents
DRT35C.3/4P-M12 35C stainless steel dynamic reference sensor · 0.05 ... 0.15 m, Max. distance to reference surface · M12 4-pin.
| Range | 35C |
|---|---|
| Model | DRT35C.3/4P-M12 |
| Supply voltage | 12 ... 30 V, DC, Incl. residual ripple |
| Connection | M12 4-pin |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 18.8 mm x 55.3 mm x 32.4 mm |
| Housing | Stainless steel |
| Operating principle | Reference teach on background |
| Light source | LED, Red |
| Switching frequency | 750 Hz, (Teach level 1: 500 Hz) |
| Response time | 0.66 ms |
| Operating range | 0.05 ... 0.15 m, Max. distance to reference surface |
| Sensing type | Dynamic reference |
| Output | Transistor, PNP |
Related parts
- 50148351 KD U-M12-4A-T0-100 F+B — connection cable, M12 4-pin female, straight, 10 m, TPE.
- 50148350 KD U-M12-4A-T0-050 F+B — connection cable, M12 4-pin female, straight, 5 m, TPE.
- 50148349 KD U-M12-4A-T0-020 F+B — connection cable, M12 4-pin female, straight, 2 m, TPE.
- 50130691 KD U-M12-4W-V1-100 — connection cable, M12 4-pin female, right angle, 10 m, PVC.
- 50130690 KD U-M12-4W-V1-050 — connection cable, M12 4-pin female, right angle, 5 m, PVC.
- 50130688 KD U-M12-4W-V1-020 — connection cable, M12 4-pin female, right angle, 2 m, PVC.
- 50130653 KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
- 50130652 KD U-M12-4A-V1-050 — connection cable, M12 4-pin female, straight, 5 m, PVC.
- 50130648 KD U-M12-4A-V1-020 — connection cable, M12 4-pin female, straight, 2 m, PVC.
- 50118543 BT 300M.5 — mounting bracket
