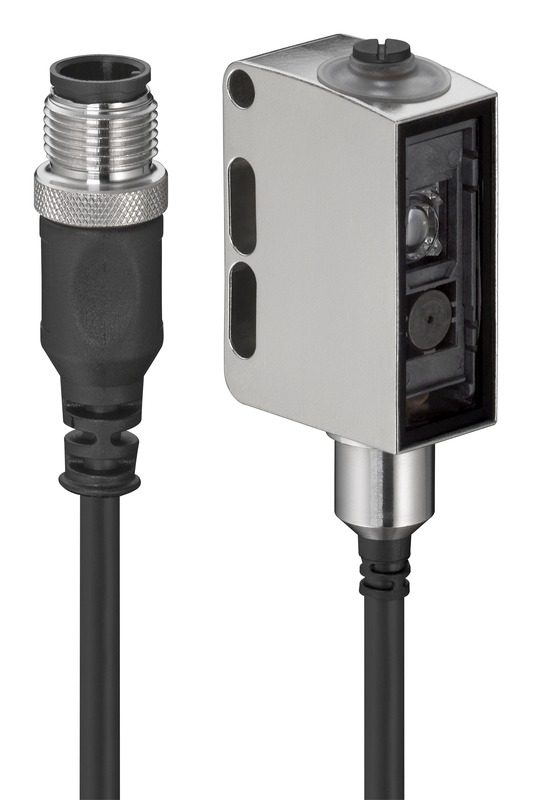

Leuze HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead
50148210
HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead.
- Range
- 55C
- Model
- HT55CL1/LG-200-M12
- Connection
- M12 4-pin · 200 mm lead
Product specification
50148210
HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50148210 — specifications & documents
HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead.
| Range | 55C |
|---|---|
| Model | HT55CL1/LG-200-M12 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M12 4-pin · 200 mm lead |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 14 mm x 35.4 mm x 25 mm |
| Housing | Stainless steel |
| Operating principle | Diffuse reflection principle with background suppression |
| Operating range, grey 18% | 0.015 ... 0.25 m |
| Operating range, black 6% | 0.015 ... 0.17 m |
| Light source | Laser, Red |
| Switching frequency | 3,000 Hz |
| Response time | 0.16 ms |
| Special version | Wash-Down design |
| Operating range | 0.015 ... 0.4 m (white 90%) |
| Sensing type | Diffuse / background suppression |
| Output | Transistor, Push-pull |
Related parts
- 50148351 KD U-M12-4A-T0-100 F+B — connection cable, M12 4-pin female, straight, 10 m, TPE.
- 50148350 KD U-M12-4A-T0-050 F+B — connection cable, M12 4-pin female, straight, 5 m, TPE.
- 50148349 KD U-M12-4A-T0-020 F+B — connection cable, M12 4-pin female, straight, 2 m, TPE.
- 50130691 KD U-M12-4W-V1-100 — connection cable, M12 4-pin female, right angle, 10 m, PVC.
- 50130690 KD U-M12-4W-V1-050 — connection cable, M12 4-pin female, right angle, 5 m, PVC.
- 50130688 KD U-M12-4W-V1-020 — connection cable, M12 4-pin female, right angle, 2 m, PVC.
- 50130653 KD U-M12-4A-V1-100 — connection cable, M12 4-pin female, straight, 10 m, PVC.
- 50130652 KD U-M12-4A-V1-050 — connection cable, M12 4-pin female, straight, 5 m, PVC.
- 50130648 KD U-M12-4A-V1-020 — connection cable, M12 4-pin female, straight, 2 m, PVC.
- 50118542 BT 200M.5 — mounting bracket
