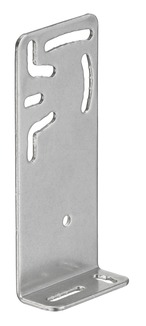

Leuze BT 200M.5 — mounting bracket
50118542
BT 200M.5 — mounting bracket
- Application
- Sensors
- Accessory type
- Mounting bracket
- Option
- BT 200M.5
Product specification
50118542
BT 200M.5 — mounting bracket
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
50118542 — specifications & documents
BT 200M.5 — mounting bracket
| Accessory type | Mounting bracket |
|---|---|
| Model | BT 200M.5 |
| Suitable for | 3B series sensors3C series sensors5 series sensors18 series sensors25B series sensors25C series sensors28 series sensors55 series sensorsBCL 92 series bar code readersBCL 95 series bar code readersIVS 108 |
Fits these parts
- 50145248 PRK5B/4X-200-M12 retroreflective photoelectric sensor, PNP output, M12 4-pin · 200 mm lead, 10–30 V DC.
- 50145261 PRK5B.1/4X-M8 retroreflective photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50148004 HT5B/2X-M8 background suppression photoelectric sensor, NPN output, M8 4-pin, 10–30 V DC.
- 50148005 HT5B/4X-M8 background suppression photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50147994 ET5B/2X-M8 diffuse photoelectric sensor, NPN output, M8 4-pin, 10–30 V DC.
- 50147995 ET5B/4X-M8 diffuse photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50154390 LS5B/9X-200-M8 throughbeam photoelectric transmitter, M8 4-pin · 200 mm lead, 10–30 V DC.
- 50154389 LE5B/4X-200-M8 throughbeam photoelectric sensor, PNP output, M8 4-pin · 200 mm lead, 10–30 V DC.
- 50148210 HT55CL1/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M12 4-pin · 200 mm lead.
- 50148214 HT55C.V/LG-200-M12 55C stainless steel diffuse / background suppression sensor · 0.015 ... 0.15 m (white 90%) · M12 4-pin · 200 mm lead.
- 50153217 ODT55CL1-2M.3/L6-M8 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
- 50153218 ODT55CL1-2M.3/L6-200-M12 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M12 4-pin · 200 mm lead.
- 50155323 ODT5BL1-1500.3/L6-M8 5B compact ToF sensor · 0.05 ... 1.5 m · M8 4-pin.
- 50155324 ODT5BL1-1500.3/L6-200-M12 5B compact ToF sensor · 0.05 ... 1.5 m · M12 4-pin · 200 mm lead.
- 50155326 ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin.
- 50155327 ODT5BIL1-2000.XV3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2 m · M12 4-pin · 200 mm lead.
- 50155329 ODT5BIL1-2500.3/L6-M8 5B compact ToF sensor · 0.03 ... 2.5 m · M8 4-pin.
- 50155330 ODT5BIL1-2500.3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2.5 m · M12 4-pin · 200 mm lead.
