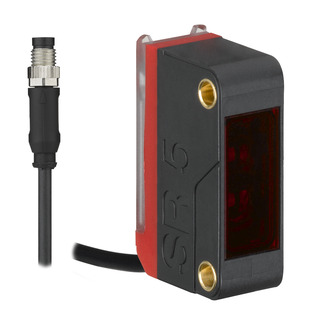

Leuze LS5B/9X-200-M8 throughbeam photoelectric transmitter
50154390
LS5B/9X-200-M8 throughbeam photoelectric transmitter, M8 4-pin · 200 mm lead, 10–30 V DC.
- Sensing type
- Throughbeam
- Output
- Transmitter
- Connection
- M8 4-pin · 200 mm lead
Product specification
50154390
LS5B/9X-200-M8 throughbeam photoelectric transmitter, M8 4-pin · 200 mm lead, 10–30 V DC.
Dimensions & specifications
Ranges depend on the target or reflector. Retroreflective sensors require a separate reflector; throughbeam applications need both transmitter and receiver. Refer to the exact product datasheet for wiring.
Accessories & related parts
50154390 — specifications & documents
LS5B/9X-200-M8 throughbeam photoelectric transmitter, M8 4-pin · 200 mm lead, 10–30 V DC.
| Range | 5B |
|---|---|
| Model | LS5B/9X-200-M8 |
| Sensing type | Throughbeam |
| Output | Transmitter |
| Supply voltage | 10–30 V DC |
| Connection | M8 4-pin · 200 mm lead |
| Protection | IP67 |
| Dimensions (W × H × D) | 11 × 32.4 × 20 mm |
| Housing | PC-ABS plastic |
| Mounting | Two M3 threaded sleeves; optional mounting device |
| Device type | Transmitter |
| Operating principle | Throughbeam principle |
| Operating range | 0 ... 10 m (guaranteed operating range) |
| Light source | LED, Red |
Related parts
- 50154389 LE5B/4X-200-M8 throughbeam photoelectric sensor, PNP output, M8 4-pin · 200 mm lead, 10–30 V DC.
- 50130876 KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
- 50130875 KD U-M8-4W-P1-050 — connection cable, M8 4-pin female, right angle, 5 m, PUR.
- 50130873 KD U-M8-4W-P1-020 — connection cable, M8 4-pin female, right angle, 2 m, PUR.
- 50130857 KD U-M8-4A-P1-100 — connection cable, M8 4-pin female, straight, 10 m, PUR.
- 50130856 KD U-M8-4A-P1-050 — connection cable, M8 4-pin female, straight, 5 m, PUR.
- 50130854 KD U-M8-4A-P1-020 — connection cable, M8 4-pin female, straight, 2 m, PUR.
- 50118542 BT 200M.5 — mounting bracket
