Leuze KD U-M8-4W-P1-100 — connection cable
50130876

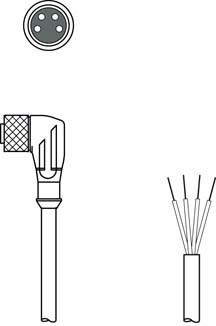

KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
- Connector
- M8 4-pin
- Cable type
- PUR cable
- Orientation
- Right angle
Product specification
50130876
KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
Dimensions & specifications
Connector pin counts are separate choices. Sensor power leads, D-coded Ethernet leads and USB configuration leads are not interchangeable. Check the exact device connection and environment.
Accessories & related parts
50130876 — specifications & documents
KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
| Accessory type | Sensor lead |
|---|---|
| Model | KD U-M8-4W-P1-100 |
| Connector | M8 4-pin |
| Connection | M8 4-pin female to open end |
| Orientation | Right angle |
| Length | 10 m |
| Cable type | PUR cable |
| Application | Oil and lubricant resistant |
| Operating voltage | 50 V AC / 60 V DC |
| Sheathing material | PUR |
| Number of conductors | 4 Piece(s) |
| Shielded | No |
| Degree of protection | IP 65IP 67 |
Fits these parts
- 50145261 PRK5B.1/4X-M8 retroreflective photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50148004 HT5B/2X-M8 background suppression photoelectric sensor, NPN output, M8 4-pin, 10–30 V DC.
- 50148005 HT5B/4X-M8 background suppression photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50147994 ET5B/2X-M8 diffuse photoelectric sensor, NPN output, M8 4-pin, 10–30 V DC.
- 50147995 ET5B/4X-M8 diffuse photoelectric sensor, PNP output, M8 4-pin, 10–30 V DC.
- 50154390 LS5B/9X-200-M8 throughbeam photoelectric transmitter, M8 4-pin · 200 mm lead, 10–30 V DC.
- 50154389 LE5B/4X-200-M8 throughbeam photoelectric sensor, PNP output, M8 4-pin · 200 mm lead, 10–30 V DC.
- 50148175 HT53CL1/LG-M8 53C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M8 4-pin.
- 50150356 HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin.
- 50150362 PRK33CPP/LG-M8 33C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M8 4-pin.
- 50153217 ODT55CL1-2M.3/L6-M8 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
- 50155120 ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
- 50155323 ODT5BL1-1500.3/L6-M8 5B compact ToF sensor · 0.05 ... 1.5 m · M8 4-pin.
- 50155326 ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin.
- 50155329 ODT5BIL1-2500.3/L6-M8 5B compact ToF sensor · 0.03 ... 2.5 m · M8 4-pin.
