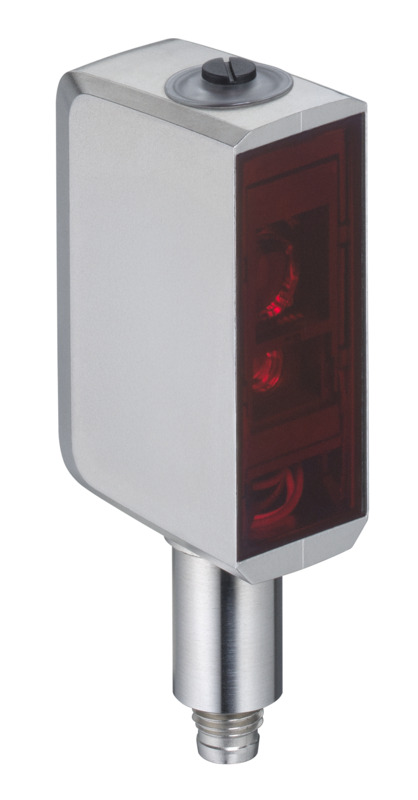

Leuze HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin
50150356
HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin.
- Range
- 33C
- Model
- HT33CL1/LG-M8
- Connection
- M8 4-pin
Product specification
50150356
HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50150356 — specifications & documents
HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin.
| Range | 33C |
|---|---|
| Model | HT33CL1/LG-M8 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M8 4-pin |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 18.8 mm x 52.8 mm x 32.4 mm |
| Housing | Stainless steel |
| Operating principle | Diffuse reflection principle with background suppression |
| Operating range, grey 18% | 0.015 ... 0.5 m |
| Operating range, black 6% | 0.02 ... 0.45 m |
| Light source | Laser, Red |
| Switching frequency | 2,500 Hz |
| Response time | 0.2 ms |
| Operating range | 0.005 ... 0.6 m (white 90%) |
| Sensing type | Diffuse / background suppression |
| Output | Transistor, Push-pull |
Related parts
- 50148348 KD U-M8-4A-T0-100 F+B — connection cable, M8 4-pin female, straight, 10 m, TPE.
- 50148347 KD U-M8-4A-T0-050 F+B — connection cable, M8 4-pin female, straight, 5 m, TPE.
- 50148346 KD U-M8-4A-T0-020 F+B — connection cable, M8 4-pin female, straight, 2 m, TPE.
- 50130876 KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
- 50130875 KD U-M8-4W-P1-050 — connection cable, M8 4-pin female, right angle, 5 m, PUR.
- 50130873 KD U-M8-4W-P1-020 — connection cable, M8 4-pin female, right angle, 2 m, PUR.
- 50130857 KD U-M8-4A-P1-100 — connection cable, M8 4-pin female, straight, 10 m, PUR.
- 50130856 KD U-M8-4A-P1-050 — connection cable, M8 4-pin female, straight, 5 m, PUR.
- 50130854 KD U-M8-4A-P1-020 — connection cable, M8 4-pin female, straight, 2 m, PUR.
- 50145361 BTU 053M.5F-D12-T — mounting system
