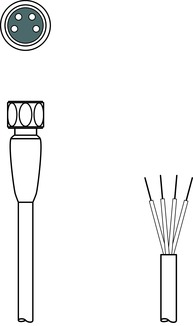

Leuze KD U-M8-4A-T0-050 F+B — connection cable
50148347
KD U-M8-4A-T0-050 F+B — connection cable, M8 4-pin female, straight, 5 m, TPE.
- Connector
- M8 4-pin
- Cable type
- Food & beverage TPE cable
- Orientation
- Straight
Product specification
50148347
KD U-M8-4A-T0-050 F+B — connection cable, M8 4-pin female, straight, 5 m, TPE.
Dimensions & specifications
Connector pin counts are separate choices. Sensor power leads, D-coded Ethernet leads and USB configuration leads are not interchangeable. Check the exact device connection and environment.
Accessories & related parts
50148347 — specifications & documents
KD U-M8-4A-T0-050 F+B — connection cable, M8 4-pin female, straight, 5 m, TPE.
| Accessory type | Sensor lead |
|---|---|
| Model | KD U-M8-4A-T0-050 F+B |
| Connector | M8 4-pin |
| Connection | M8 4-pin female to open end |
| Orientation | Straight |
| Length | 5 m |
| Cable type | Food & beverage TPE cable |
| Application | Chemical resistantHygienic and wet areas |
| Operating voltage | Max. 60 V AC/DC |
| Sheathing material | TPE |
| Number of conductors | 4 Piece(s) |
| Shielded | No |
| Degree of protection | IP 65IP 67IP 68IP 69 |
| Installation note | Manufacturer food-and-beverage lead. Check chemical, temperature and cleaning requirements for the installation. |
Fits these parts
- 50148175 HT53CL1/LG-M8 53C stainless steel diffuse / background suppression sensor · 0.015 ... 0.4 m (white 90%) · M8 4-pin.
- 50150356 HT33CL1/LG-M8 33C stainless steel diffuse / background suppression sensor · 0.005 ... 0.6 m (white 90%) · M8 4-pin.
- 50150362 PRK33CPP/LG-M8 33C stainless steel retroreflective sensor · 0.05 ... 14 m, With reflector TK(S) 100x100 · M8 4-pin.
- 50153217 ODT55CL1-2M.3/L6-M8 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
- 50155120 ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
