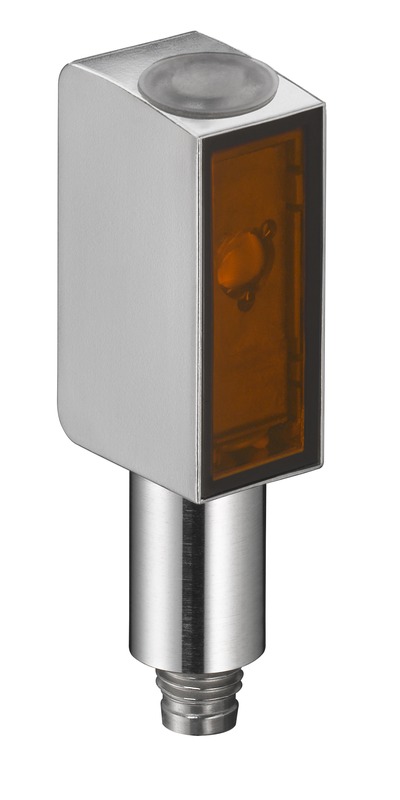

Leuze ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin
50155120
ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
- Range
- 53C
- Model
- ODT53CL1-2M/L6-M8
- Connection
- M8 4-pin
Product specification
50155120
ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50155120 — specifications & documents
ODT53CL1-2M/L6-M8 53C stainless steel time-of-flight sensor · 0.07 ... 2 m · M8 4-pin.
| Range | 53C |
|---|---|
| Model | ODT53CL1-2M/L6-M8 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M8 4-pin |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 14 mm x 35.4 mm x 20.4 mm |
| Housing | Stainless steel |
| Operating principle | Distance diffuse sensor with background suppression |
| Light source | Laser, Red |
| Switching frequency | 7 ... 15 Hz, depending on diffuse reflectance |
| Response time | 33 ... 70 ms, depending on diffuse reflectance |
| Measurement range | 50 ... 2,500 mm |
| Measurement value output | via IO-Link |
| Special version | 2 independent switching outputs · HYGIENE design · Measurement value output |
| Operating range | 0.07 ... 2 m |
| Sensing type | Time-of-Flight |
| Output | Transistor, Push-pull |
Related parts
- 50148348 KD U-M8-4A-T0-100 F+B — connection cable, M8 4-pin female, straight, 10 m, TPE.
- 50148347 KD U-M8-4A-T0-050 F+B — connection cable, M8 4-pin female, straight, 5 m, TPE.
- 50148346 KD U-M8-4A-T0-020 F+B — connection cable, M8 4-pin female, straight, 2 m, TPE.
- 50130876 KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
- 50130875 KD U-M8-4W-P1-050 — connection cable, M8 4-pin female, right angle, 5 m, PUR.
- 50130873 KD U-M8-4W-P1-020 — connection cable, M8 4-pin female, right angle, 2 m, PUR.
- 50130857 KD U-M8-4A-P1-100 — connection cable, M8 4-pin female, straight, 10 m, PUR.
- 50130856 KD U-M8-4A-P1-050 — connection cable, M8 4-pin female, straight, 5 m, PUR.
- 50130854 KD U-M8-4A-P1-020 — connection cable, M8 4-pin female, straight, 2 m, PUR.
- 50145361 BTU 053M.5F-D12-T — mounting system
