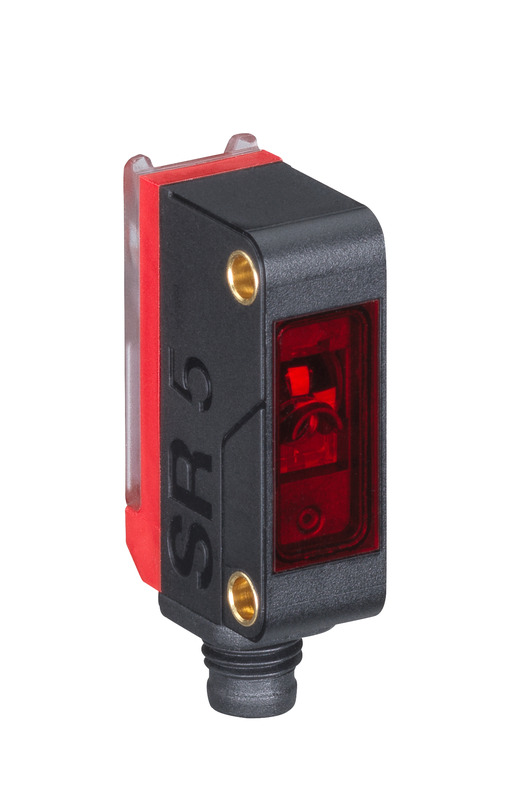

Leuze ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin
50155326
ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin.
- Range
- 5B
- Model
- ODT5BIL1-2000.XV3/L6-M8
- Connection
- M8 4-pin
Product specification
50155326
ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin.
Dimensions & specifications
Operating range and measurement range are different. Check the exact product data for the target and mounting conditions.
Accessories & related parts
50155326 — specifications & documents
ODT5BIL1-2000.XV3/L6-M8 5B compact ToF sensor · 0.03 ... 2 m · M8 4-pin.
| Range | 5B |
|---|---|
| Model | ODT5BIL1-2000.XV3/L6-M8 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M8 4-pin |
| Protection | IP 67 |
| Dimensions (W × H × D) | 11 mm x 32.4 mm x 20 mm |
| Housing | Plastic |
| Operating principle | Distance diffuse sensor with background suppression |
| Light source | Laser, Infrared |
| Switching frequency | 100 Hz |
| Response time | 5 ms |
| Measurement range | 0 ... 2,500 mm |
| Measurement value output | via IO-Link |
| Special version | 2 independent switching outputs · Measurement value output · Speed version |
| Operating range | 0.03 ... 2 m |
| Sensing type | Time-of-Flight |
| Output | Transistor, Push-pull |
Related parts
- 50130876 KD U-M8-4W-P1-100 — connection cable, M8 4-pin female, right angle, 10 m, PUR.
- 50130875 KD U-M8-4W-P1-050 — connection cable, M8 4-pin female, right angle, 5 m, PUR.
- 50130873 KD U-M8-4W-P1-020 — connection cable, M8 4-pin female, right angle, 2 m, PUR.
- 50130857 KD U-M8-4A-P1-100 — connection cable, M8 4-pin female, straight, 10 m, PUR.
- 50130856 KD U-M8-4A-P1-050 — connection cable, M8 4-pin female, straight, 5 m, PUR.
- 50130854 KD U-M8-4A-P1-020 — connection cable, M8 4-pin female, straight, 2 m, PUR.
- 50139831 BT 205M — mounting device
- 50118542 BT 200M.5 — mounting bracket
