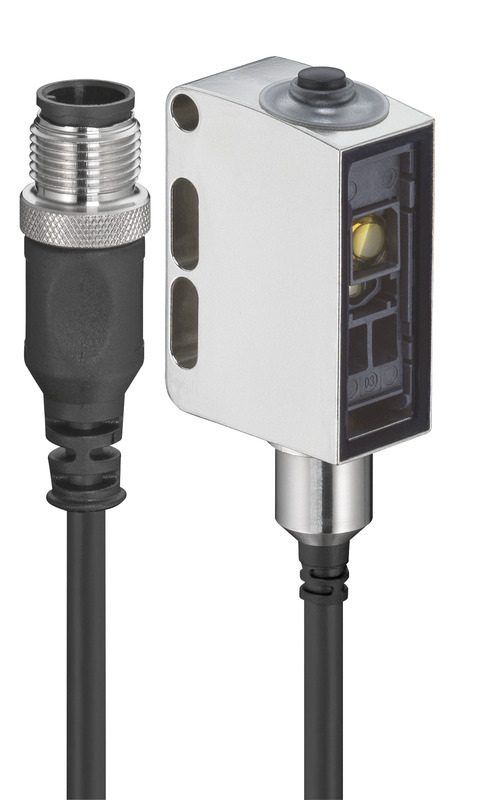

Leuze ODT55CL1-2M.3/L6-200-M12 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M12 4-pin · 200 mm lead
50153218
ODT55CL1-2M.3/L6-200-M12 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M12 4-pin · 200 mm lead.
- Range
- 55C
- Model
- ODT55CL1-2M.3/L6-200-M12
- Connection
- M12 4-pin · 200 mm lead
Product specification
50153218
ODT55CL1-2M.3/L6-200-M12 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M12 4-pin · 200 mm lead.
Dimensions & specifications
Choose the hygienic or wash-down housing for the application. Retroreflective models require a suitable reflector; verify installation and cleaning requirements in the datasheet.
Accessories & related parts
50153218 — specifications & documents
ODT55CL1-2M.3/L6-200-M12 55C stainless steel time-of-flight sensor · 0.07 ... 2 m · M12 4-pin · 200 mm lead.
| Range | 55C |
|---|---|
| Model | ODT55CL1-2M.3/L6-200-M12 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M12 4-pin · 200 mm lead |
| Protection | IP 67 · IP 68 · IP 69K |
| Dimensions (W × H × D) | 14 mm x 35.4 mm x 25 mm |
| Housing | Stainless steel |
| Operating principle | Distance diffuse sensor with background suppression |
| Light source | Laser, Red |
| Switching frequency | 7 ... 15 Hz, depending on diffuse reflectance |
| Response time | 33 ... 70 ms, depending on diffuse reflectance |
| Measurement range | 50 ... 2,500 mm |
| Measurement value output | via IO-Link |
| Special version | 2 independent switching outputs · Measurement value output · Wash-Down design |
| Operating range | 0.07 ... 2 m |
| Sensing type | Time-of-Flight |
| Output | Transistor, Push-pull |
