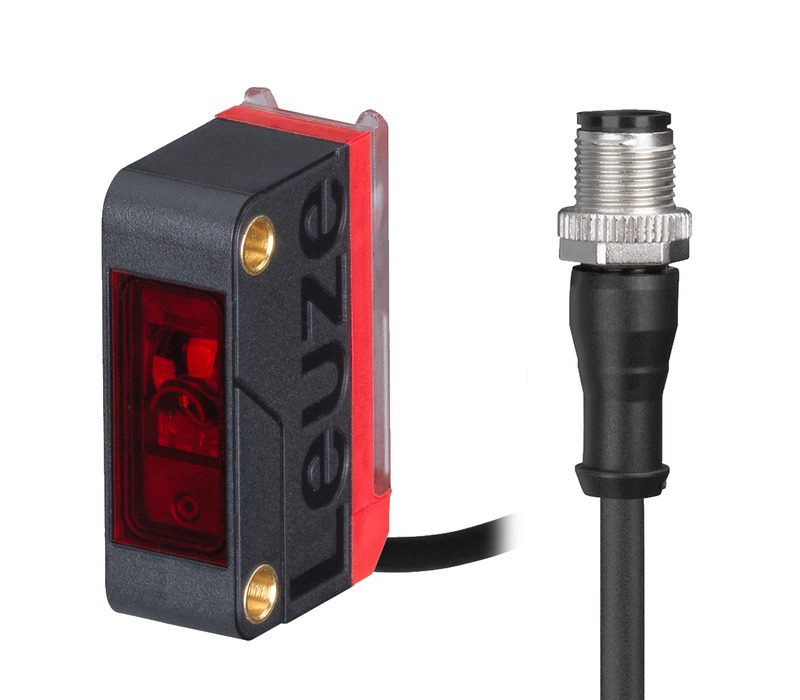

Leuze ODT5BIL1-2500.3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2.5 m · M12 4-pin · 200 mm lead
50155330
ODT5BIL1-2500.3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2.5 m · M12 4-pin · 200 mm lead.
- Range
- 5B
- Model
- ODT5BIL1-2500.3/L6-200-M12
- Connection
- M12 4-pin · 200 mm lead
Product specification
50155330
ODT5BIL1-2500.3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2.5 m · M12 4-pin · 200 mm lead.
Dimensions & specifications
Operating range and measurement range are different. Check the exact product data for the target and mounting conditions.
Accessories & related parts
50155330 — specifications & documents
ODT5BIL1-2500.3/L6-200-M12 5B compact ToF sensor · 0.03 ... 2.5 m · M12 4-pin · 200 mm lead.
| Range | 5B |
|---|---|
| Model | ODT5BIL1-2500.3/L6-200-M12 |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Connection | M12 4-pin · 200 mm lead |
| Protection | IP 67 |
| Dimensions (W × H × D) | 11 mm x 32.4 mm x 20 mm |
| Housing | Plastic |
| Operating principle | Distance diffuse sensor with background suppression |
| Light source | Laser, Infrared |
| Switching frequency | 50 Hz |
| Response time | 10 ms |
| Measurement range | 0 ... 3,000 mm |
| Measurement value output | via IO-Link |
| Special version | 2 independent switching outputs · Measurement value output |
| Operating range | 0.03 ... 2.5 m |
| Sensing type | Time-of-Flight |
| Output | Transistor, Push-pull |
