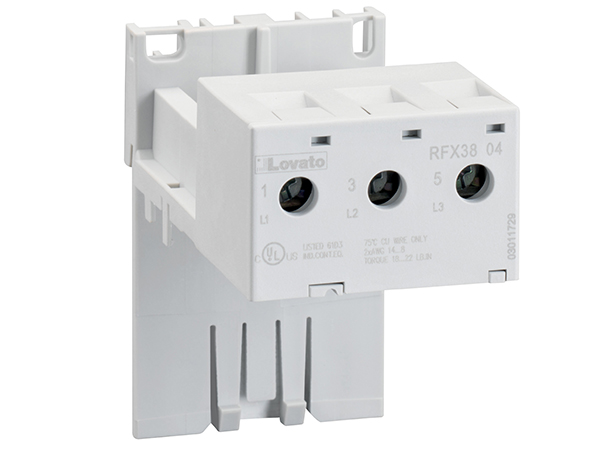

Lovato RFX3804 separate mounting adapter for RF38 thermal overload relays
RFX3804
RFX3804 separate mounting adapter for RF38 thermal overload relays, DIN rail or screw mounting.
- Application
- Thermal overload relays
- Accessory type
- Separate mounting adapter
- Option
- RF38
Product specification
RFX3804
RFX3804 separate mounting adapter for RF38 thermal overload relays, DIN rail or screw mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
RFX3804 — specifications & documents
RFX3804 separate mounting adapter for RF38 thermal overload relays, DIN rail or screw mounting.
| Accessory type | Separate mounting adapter |
|---|---|
| Compatible relay | RF38 |
| Manufacturer order code | RFX3804 |
| Mounting | DIN rail or screw fixing |
Fits these parts
- RF380016 RF38 thermal overload relay, 0.1–0.16 A. Direct mounting on BF09–BF38 contactors.
- RF380025 RF38 thermal overload relay, 0.16–0.25 A. Direct mounting on BF09–BF38 contactors.
- RF380040 RF38 thermal overload relay, 0.25–0.4 A. Direct mounting on BF09–BF38 contactors.
- RF380063 RF38 thermal overload relay, 0.4–0.63 A. Direct mounting on BF09–BF38 contactors.
- RF380100 RF38 thermal overload relay, 0.63–1 A. Direct mounting on BF09–BF38 contactors.
- RF380160 RF38 thermal overload relay, 1–1.6 A. Direct mounting on BF09–BF38 contactors.
- RF380250 RF38 thermal overload relay, 1.6–2.5 A. Direct mounting on BF09–BF38 contactors.
- RF380400 RF38 thermal overload relay, 2.5–4 A. Direct mounting on BF09–BF38 contactors.
- RF380650 RF38 thermal overload relay, 4–6.5 A. Direct mounting on BF09–BF38 contactors.
- RF381000 RF38 thermal overload relay, 6.3–10 A. Direct mounting on BF09–BF38 contactors.
- RF381400 RF38 thermal overload relay, 9–14 A. Direct mounting on BF09–BF38 contactors.
- RF381800 RF38 thermal overload relay, 13–18 A. Direct mounting on BF09–BF38 contactors.
- RF382300 RF38 thermal overload relay, 17–23 A. Direct mounting on BF09–BF38 contactors.
- RF382500 RF38 thermal overload relay, 20–25 A. Direct mounting on BF09–BF38 contactors.
- RF383200 RF38 thermal overload relay, 24–32 A. Direct mounting on BF09–BF38 contactors.
- RF383800 RF38 thermal overload relay, 32–38 A. Direct mounting on BF09–BF38 contactors.
