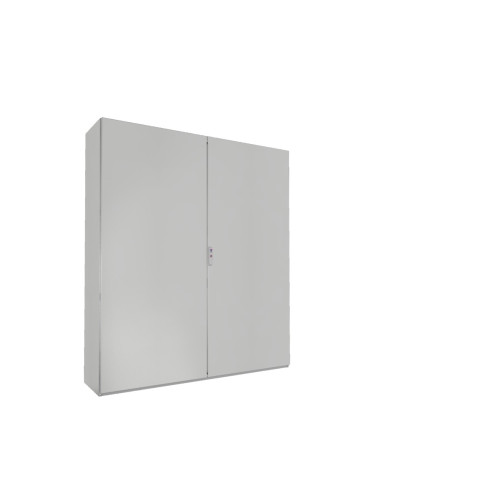

Rittal VX SE floor-standing enclosure
5842600
VX SE sheet-steel enclosure, 1600 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- W × H × D
- 1600 × 1800 × 400 mm
- Protection
- IP55
- Material
- Sheet steel
Enclosure sizesCompare dimensions and part numbersView size table
Product specification
5842600
VX SE sheet-steel enclosure, 1600 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
Dimensions & specifications
44 AX steel enclosure sizes, 19 VX SE IP55 sizes and 3 VX SE IP66 versions. Dimensions are catalogue Width × Height × Depth. Mounting plate included. Actual drawing dimensions are listed separately in the specifications.
Accessories & related parts
5842600 — specifications & documents
VX SE sheet-steel enclosure, 1600 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
| Range | VX SE |
|---|---|
| Mounting | Floor standing |
| Width | 1600 mm |
| Height | 1800 mm |
| Depth | 400 mm |
| Mounting plate width | 1499 mm |
| Mounting plate height | 1696 mm |
| Doors | 2 |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Protection | IP55 |
| Supply includes | Enclosure with integral roof and sides, door(s), detachable rear panel, mounting plate, gland plates, 3 mm double-bit lock, two 18 × 39 mm punched rails |
| Plinth | Not included |
| Size convention | Rittal catalogue dimensions: W × H × D |
| Overall depth (drawing T1) | 405 mm |
Related parts
- 8640008 VX plinth front/rear assemblies, 100 mm high, for 1600 mm enclosure width. One manufacturer pack completes front and rear, including four corner pieces; side panels separate.
- 8640031 VX plinth side trim panel, 100 mm high, for 400 mm enclosure depth. Manufacturer pack: 2 panels with assembly parts.
- 8640026 VX plinth front/rear assemblies, 200 mm high, for 1600 mm enclosure width. One manufacturer pack completes front and rear, including four corner pieces; side panels separate.
- 8640041 VX plinth side trim panel, 200 mm high, for 400 mm enclosure depth. Manufacturer pack: 2 panels with assembly parts.
- 8611020 VX SE comfort handle. For lock insert. Lock insert or cylinder ordered separately.
- 8611290 VX SE comfort handle. For lock insert and padlock. Lock insert or cylinder ordered separately.
- 8611070 VX SE comfort handle. For profile half-cylinder. Lock insert or cylinder ordered separately.
- 4612000 Levelling feet for VX SE enclosures.
- 4583000 Door stay for VX SE enclosure doors.
- 2565000 Earth strap, M8–M8, 16 mm², 170 mm long. Manufacturer pack: 5 straps.
- 8800190 180° hinges for VX SE sheet-steel doors. Pack of 4 with assembly parts. Check the hinge count for the chosen door; the enclosure protection category may be reduced.
- 2514000 A4 portrait wiring-plan pocket, self-adhesive halogen-free polystyrene for the inside of enclosure doors.
- 2500110 LED enclosure system light, 600 lm, 7 W, 100–230 V AC, without socket. Connection and mounting accessories separate.
- 3105350 Enclosure heater without fan, 63–75 W at 10 °C, 110–240 V AC. Temperature or humidity control selected separately.
