Rittal VX plinth side trim panel
8640031

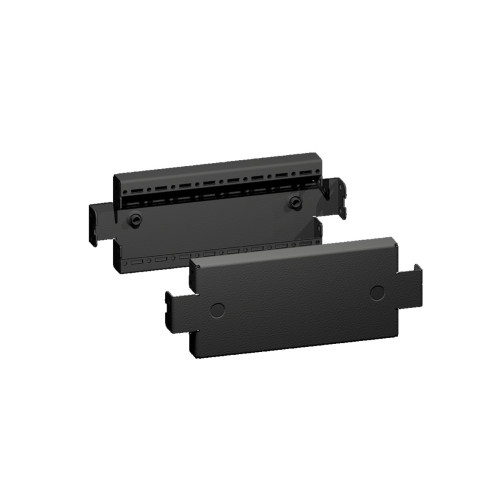

VX plinth side trim panel, 100 mm high, for 400 mm enclosure depth. Manufacturer pack: 2 panels with assembly parts.
- Application
- VX SE enclosures
- Accessory type
- Plinth side panels
- Option
- 400 mm deep / 100 mm high
Product specification
8640031
VX plinth side trim panel, 100 mm high, for 400 mm enclosure depth. Manufacturer pack: 2 panels with assembly parts.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
8640031 — specifications & documents
VX plinth side trim panel, 100 mm high, for 400 mm enclosure depth. Manufacturer pack: 2 panels with assembly parts.
| Enclosure depth | 400 mm |
|---|---|
| Plinth height | 100 mm |
| Colour | RAL 9005 |
| Manufacturer pack | 2 side panels |
| Quote quantity basis | Individual panels; two per enclosure |
Fits these parts
- 5830600 VX SE sheet-steel enclosure, 600 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5831600 VX SE sheet-steel enclosure, 800 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5832600 VX SE sheet-steel enclosure, 800 × 2000 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5840600 VX SE sheet-steel enclosure, 1000 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 5841600 VX SE sheet-steel enclosure, 1200 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 5843600 VX SE sheet-steel enclosure, 1200 × 2000 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 5842600 VX SE sheet-steel enclosure, 1600 × 1800 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
