Siemens SIRIUS three-phase busbar infeed terminal for S00 / S0
3RV2925-5AB

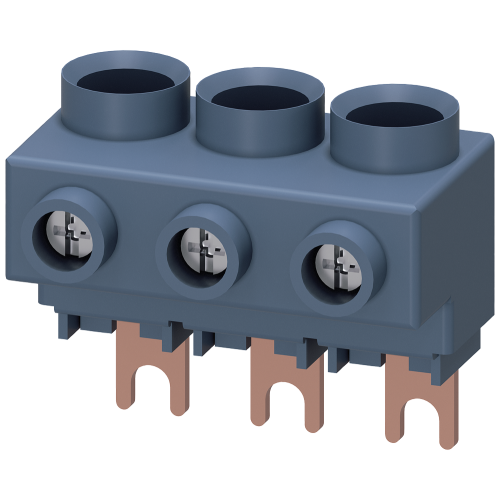

SIRIUS three-phase busbar infeed terminal for S00 / S0, connection from top.
- Application
- Motor protection
- Accessory type
- Motor protection infeed
- Option
- S00 / S0 · Top
Product specification
3RV2925-5AB
SIRIUS three-phase busbar infeed terminal for S00 / S0, connection from top.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
3RV2925-5AB — specifications & documents
SIRIUS three-phase busbar infeed terminal for S00 / S0, connection from top.
| Accessory type | Motor protection infeed |
|---|---|
| Frame size | S00 / S0 |
| Cable entry | Top |
| Conductor capacity | 2.5–25 mm² solid/stranded; 2.5–16 mm² fine-stranded with ferrule |
| Application | Standard IEC busbar feed; UL Type E/F requires the specified special terminal |
Fits these parts
- 3RV1915-1AB SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
- 3RV1915-1BB SIRIUS three-phase busbar for 3 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
- 3RV1915-1CB SIRIUS three-phase busbar for 4 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
- 3RV1915-1DB SIRIUS three-phase busbar for 5 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
- 3RV1915-2AB SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 55 mm pitch, 63 A.
- 3RV1915-2BB SIRIUS three-phase busbar for 3 screw-terminal S00 / S0 motor protection breakers, 55 mm pitch, 63 A.
- 3RV1915-2CB SIRIUS three-phase busbar for 4 screw-terminal S00 / S0 motor protection breakers, 55 mm pitch, 63 A.
- 3RV1915-2DB SIRIUS three-phase busbar for 5 screw-terminal S00 / S0 motor protection breakers, 55 mm pitch, 63 A.
- 3RV1915-3AB SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 63 mm pitch, 63 A.
- 3RV1915-3CB SIRIUS three-phase busbar for 4 screw-terminal S00 / S0 motor protection breakers, 63 mm pitch, 63 A.
