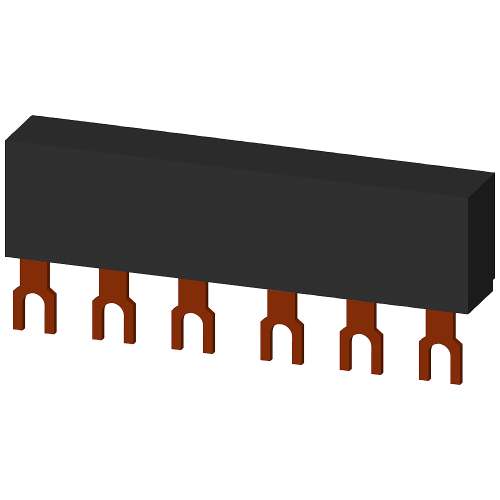

Siemens SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers
3RV1915-1AB
SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
- Application
- Motor protection
- Accessory type
- Motor protection busbar
- Option
- S00 / S0 · 2 breakers · 45 mm
Product specification
3RV1915-1AB
SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
3RV1915-1AB — specifications & documents
SIRIUS three-phase busbar for 2 screw-terminal S00 / S0 motor protection breakers, 45 mm pitch, 63 A.
| Accessory type | Motor protection busbar |
|---|---|
| Frame size | S00 / S0 |
| Breaker positions | 2 |
| Modular spacing | 45 mm |
| Accessory clearance | No side-mounted accessories |
| Rated current at 690 V | 63 A |
| Fit restriction | S0 breaker rated current must not exceed 32 A; not for 3RV21 |
Related parts
- 3RV2925-5AB SIRIUS three-phase busbar infeed terminal for S00 / S0, connection from top.
- 3RV1915-6AB SIRIUS busbar connection-tag cover for unused S00 / S0 breaker positions.
- 3RV2915-5B SIRIUS three-phase busbar infeed terminal for S00 / S0, connection from below; occupies one breaker position.
Fits these parts
- 3RV2011-0FA10 SIRIUS S00 motor protection circuit breaker, 0.35–0.5 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-0GA10 SIRIUS S00 motor protection circuit breaker, 0.45–0.63 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-0HA10 SIRIUS S00 motor protection circuit breaker, 0.55–0.8 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-0JA10 SIRIUS S00 motor protection circuit breaker, 0.7–1 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-0KA10 SIRIUS S00 motor protection circuit breaker, 0.9–1.25 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1AA10 SIRIUS S00 motor protection circuit breaker, 1.1–1.6 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1BA10 SIRIUS S00 motor protection circuit breaker, 1.4–2 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1CA10 SIRIUS S00 motor protection circuit breaker, 1.8–2.5 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1DA10 SIRIUS S00 motor protection circuit breaker, 2.2–3.2 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1EA10 SIRIUS S00 motor protection circuit breaker, 2.8–4 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1FA10 SIRIUS S00 motor protection circuit breaker, 3.5–5 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1GA10 SIRIUS S00 motor protection circuit breaker, 4.5–6.3 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1HA10 SIRIUS S00 motor protection circuit breaker, 5.5–8 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1JA10 SIRIUS S00 motor protection circuit breaker, 7–10 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-1KA10 SIRIUS S00 motor protection circuit breaker, 9–12.5 A adjustable thermal setting, class 10, screw terminals.
- 3RV2011-4AA10 SIRIUS S00 motor protection circuit breaker, 10–16 A adjustable thermal setting, class 10, screw terminals.
- 3RV2021-4BA10 SIRIUS S0 motor protection circuit breaker, 13–20 A adjustable thermal setting, class 10, screw terminals.
- 3RV2021-4CA10 SIRIUS S0 motor protection circuit breaker, 16–22 A adjustable thermal setting, class 10, screw terminals.
- 3RV2021-4DA10 SIRIUS S0 motor protection circuit breaker, 18–25 A adjustable thermal setting, class 10, screw terminals.
- 3RV2021-4NA10 SIRIUS S0 motor protection circuit breaker, 23–28 A adjustable thermal setting, class 10, screw terminals.
- 3RV2021-4EA10 SIRIUS S0 motor protection circuit breaker, 27–32 A adjustable thermal setting, class 10, screw terminals.
