Siemens SENTRON 5ST pin busbar
5ST3716

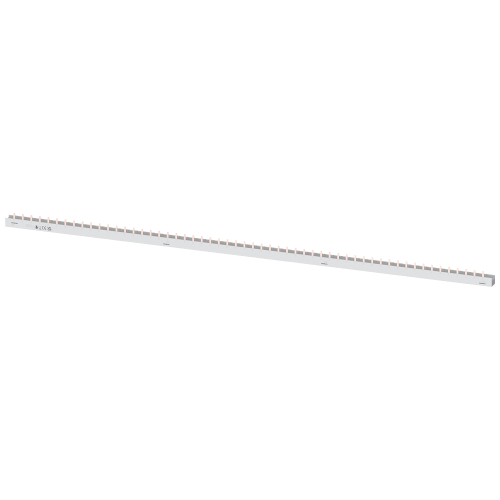

SENTRON 5ST pin busbar, 4-phase, 16 mm², 1016 mm, cuttable, for 4-pole MCBs without side accessory gaps.
- Application
- Circuit protection
- Accessory type
- Busbar
- Option
- 4-phase · 4P MCB · no accessory gap
Product specification
5ST3716
SENTRON 5ST pin busbar, 4-phase, 16 mm², 1016 mm, cuttable, for 4-pole MCBs without side accessory gaps.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
5ST3716 — specifications & documents
SENTRON 5ST pin busbar, 4-phase, 16 mm², 1016 mm, cuttable, for 4-pole MCBs without side accessory gaps.
| Accessory type | Busbar |
|---|---|
| Compatible family | 5SY4 |
| MCB poles | 4 |
| Busbar phases | 4 |
| Copper cross-section | 16 mm² |
| Length | 1016 mm, cut to suit |
| Spacing | 18 mm between adjacent pole positions; no accessory gap |
| End caps | Not supplied; select matching caps |
| Maximum busbar current | 80 A per phase with end infeed; 130 A per phase with centre infeed, subject to complete assembly design |
Related parts
- 5ST3718 SENTRON end cap for 4-phase cuttable 5ST37 pin busbars.
- 5ST3655 SENTRON touch-protection covers for unused busbar pins, yellow, five individual pin covers per set.
- 5ST3768-3 SENTRON infeed terminal for 5ST36 / 5ST37 busbars, centre cable entry, 6–25 mm² conductor.
- 5ST3760-3 SENTRON infeed terminal for 5ST36 / 5ST37 busbars, centre cable entry, 6–50 mm² conductor.
Fits these parts
- 5SY4406-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 6 A, 10 kA, 400 V AC.
- 5SY4410-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 10 A, 10 kA, 400 V AC.
- 5SY4416-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 16 A, 10 kA, 400 V AC.
- 5SY4420-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 20 A, 10 kA, 400 V AC.
- 5SY4425-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 25 A, 10 kA, 400 V AC.
- 5SY4432-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 32 A, 10 kA, 400 V AC.
- 5SY4440-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 40 A, 10 kA, 400 V AC.
- 5SY4450-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 50 A, 10 kA, 400 V AC.
- 5SY4463-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 63 A, 10 kA, 400 V AC.
- 5SY4402-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 2 A, 10 kA, 400 V AC.
- 5SY4404-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 4 A, 10 kA, 400 V AC.
- 5SY4406-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 6 A, 10 kA, 400 V AC.
- 5SY4410-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 10 A, 10 kA, 400 V AC.
- 5SY4416-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 16 A, 10 kA, 400 V AC.
- 5SY4420-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 20 A, 10 kA, 400 V AC.
- 5SY4425-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 25 A, 10 kA, 400 V AC.
- 5SY4432-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 32 A, 10 kA, 400 V AC.
- 5SY4440-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 40 A, 10 kA, 400 V AC.
- 5SY4450-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 50 A, 10 kA, 400 V AC.
- 5SY4463-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 63 A, 10 kA, 400 V AC.
- 5SY4402-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 2 A, 10 kA, 400 V AC.
- 5SY4403-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 3 A, 10 kA, 400 V AC.
- 5SY4404-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 4 A, 10 kA, 400 V AC.
- 5SY4406-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 6 A, 10 kA, 400 V AC.
- 5SY4408-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 8 A, 10 kA, 400 V AC.
- 5SY4410-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 10 A, 10 kA, 400 V AC.
- 5SY4413-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 13 A, 10 kA, 400 V AC.
- 5SY4416-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 16 A, 10 kA, 400 V AC.
- 5SY4420-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 20 A, 10 kA, 400 V AC.
- 5SY4425-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 25 A, 10 kA, 400 V AC.
- 5SY4432-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 32 A, 10 kA, 400 V AC.
- 5SY4440-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 40 A, 10 kA, 400 V AC.
- 5SY4450-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 50 A, 10 kA, 400 V AC.
- 5SY4463-8 SENTRON 5SY4 miniature circuit breaker, 4 pole, D-curve, 63 A, 10 kA, 400 V AC.
- 5SY4413-6 SENTRON 5SY4 miniature circuit breaker, 4 pole, B-curve, 13 A, 10 kA, 400 V AC.
- 5SY4403-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 3 A, 10 kA, 400 V AC.
- 5SY4408-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 8 A, 10 kA, 400 V AC.
- 5SY4413-7 SENTRON 5SY4 miniature circuit breaker, 4 pole, C-curve, 13 A, 10 kA, 400 V AC.
