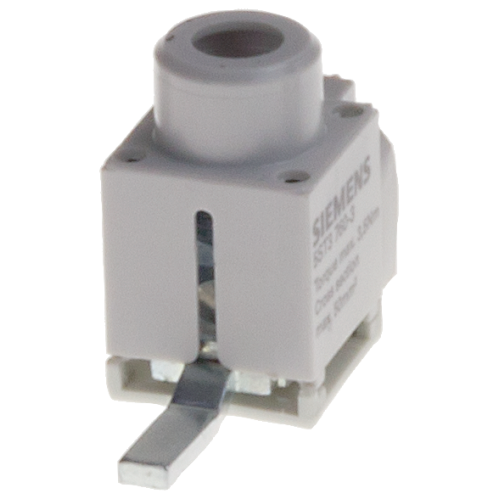

Siemens SENTRON infeed terminal for 5ST36 / 5ST37 busbars
5ST3760-3
SENTRON infeed terminal for 5ST36 / 5ST37 busbars, centre cable entry, 6–50 mm² conductor.
- Application
- Circuit protection
- Accessory type
- Busbar infeed terminal
- Option
- 6–50 mm² · centre entry
Product specification
5ST3760-3
SENTRON infeed terminal for 5ST36 / 5ST37 busbars, centre cable entry, 6–50 mm² conductor.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
5ST3760-3 — specifications & documents
SENTRON infeed terminal for 5ST36 / 5ST37 busbars, centre cable entry, 6–50 mm² conductor.
| Accessory type | Busbar infeed terminal |
|---|---|
| Conductor cross-section | 6–50 mm² |
| Cable entry | Centre |
| Application | One terminal per phase being fed; not suitable for 5ST376. busbars |
Fits these parts
- 5ST3701 SENTRON 5ST pin busbar, 1-phase, 16 mm², 1016 mm, cuttable, for 1-pole MCBs without side accessory gaps.
- 5ST3703 SENTRON 5ST pin busbar, 1-phase, 16 mm², 1016 mm, cuttable, for 1-pole MCBs with one 9 mm auxiliary/fault module per breaker.
- 5ST3705 SENTRON 5ST pin busbar, 2-phase, 16 mm², 1016 mm, cuttable, for 2-pole MCBs without side accessory gaps.
- 5ST3707 SENTRON 5ST pin busbar, 2-phase, 16 mm², 1016 mm, cuttable, for 2-pole MCBs with one 9 mm auxiliary/fault module per breaker.
- 5ST3710 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 3-pole MCBs without side accessory gaps.
- 5ST3712 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 3-pole MCBs with one 9 mm auxiliary/fault module per breaker.
- 5ST3716 SENTRON 5ST pin busbar, 4-phase, 16 mm², 1016 mm, cuttable, for 4-pole MCBs without side accessory gaps.
- 5ST3714 SENTRON 5ST pin busbar, 3-phase, 16 mm², 1016 mm, cuttable, for 1-pole MCBs with one 9 mm auxiliary/fault module per breaker.
