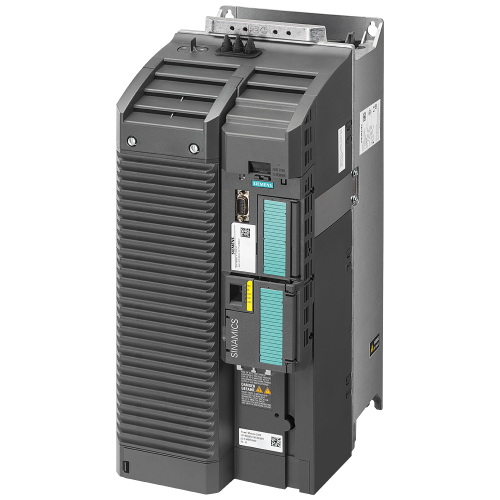

Siemens SINAMICS G120C drive
6SL3210-1KE27-0AF1
SINAMICS G120C drive, 30 kW high overload / 37 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
- Drive range
- G120C
- Supply voltage
- 400 V three phase
- Motor rating
- 30 kW HO / 37 kW LO
Product specification
6SL3210-1KE27-0AF1
SINAMICS G120C drive, 30 kW high overload / 37 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
Dimensions & specifications
Filtered core range. Select by motor current and overload duty; HO and LO ratings are shown separately. Check EMC, installation clearances, operating conditions and motor cable requirements.
Accessories & related parts
6SL3210-1KE27-0AF1 — specifications & documents
SINAMICS G120C drive, 30 kW high overload / 37 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
| Drive range | SINAMICS G120C |
|---|---|
| Supply voltage | 380–480 V AC, 3 phase |
| Motor rating (high overload) | 30 kW |
| Motor rating (low overload) | 37 kW |
| Output current (HO) | 58 A |
| Output current (LO) | 68 A |
| Frame size | FSD |
| Communication | PROFINET / EtherNet/IP |
| EMC filter | Integrated Class A; installation and cable-length conditions apply |
| Protection | IP20 / UL open type |
| Safety function | Integrated Safe Torque Off (STO); design and validation required |
| I/O | 6 DI, 2 DO, 1 AI, 1 AO, motor temperature input |
| Width × height × depth | 200 × 472 × 237 mm, without operator panel |
| Height with shield plates | 708 mm |
| Operator panel | Optional BOP-2 or IOP-2; adds 11 mm depth when plugged on |
| Published filtered power loss | 1032 W (Siemens 02/2026 reference data) |
| Supplied components | Shield connection plates and standard terminal fittings; operator panel ordered separately |
Related parts
- 6SL3255-0AA00-4CA1 BOP-2 basic operator panel for SINAMICS G120C.
- 6SL3255-0AA00-4JA2 IOP-2 intelligent operator panel for SINAMICS G120C.
- 6SL3255-0AA00-4HA1 IOP-2 handheld commissioning set with operator panel, handheld housing, rechargeable batteries, charger, RS232 cable and USB cable.
- 6SL3255-0AA00-5AA0 SINAMICS G120 Smart Access wireless commissioning and diagnostic module.
- 6SL3255-0AA00-2CA0 SINAMICS PC converter connection kit 2, USB cable, 3 m.
- 6SL3054-4AG00-2AA0 SINAMICS 512 MB memory card without firmware for parameter backup and transfer.
- 6SL3262-1AD01-0DA0 Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection.
- 6SE6400-3TC07-5ED0 Output reactor for G120C FSD 22–37 kW low-overload drives. Siemens specifies two reactors connected in series for this application.
