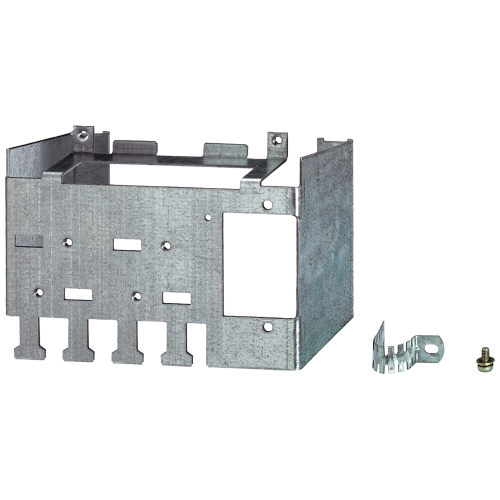

Siemens Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection
6SL3262-1AD01-0DA0
Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection.
- Application
- Variable speed drives
- Accessory type
- Braking shield kits
- Option
- G120C · FSD
Product specification
6SL3262-1AD01-0DA0
Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
6SL3262-1AD01-0DA0 — specifications & documents
Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection.
| Accessory type | Braking shield kits |
|---|---|
| Compatible family | SINAMICS G120C |
| Frame size | FSD |
| Use | Additional upper shield kit when connecting an optional braking resistor |
| Included with drive | Standard motor/signal shield plates are already supplied |
Fits these parts
- 6SL3210-1KE24-4AF1 SINAMICS G120C drive, 18.5 kW high overload / 22 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
- 6SL3210-1KE26-0AF1 SINAMICS G120C drive, 22 kW high overload / 30 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
- 6SL3210-1KE27-0AF1 SINAMICS G120C drive, 30 kW high overload / 37 kW low overload, 400 V three phase, PROFINET / EtherNet/IP, integrated Class A filter.
