WAGO TOPJOB S 2004
2004-1207

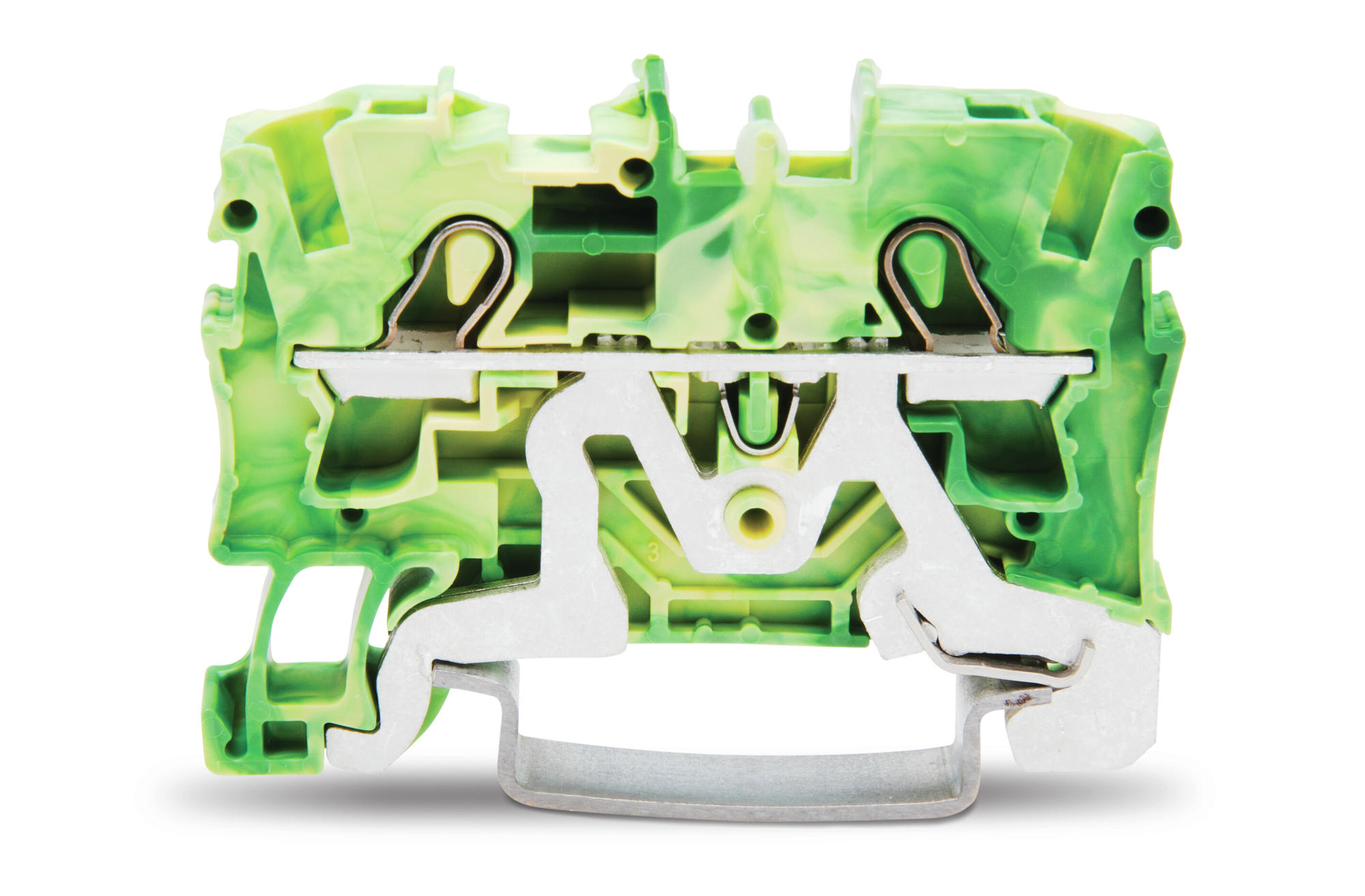

TOPJOB S 2004, 4 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 6.2 mm wide.
- Nominal cross-section
- 4 mm²
- Function
- Protective earth
- Colour
- Green/yellow
Product specification
2004-1207
TOPJOB S 2004, 4 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 6.2 mm wide.
Dimensions & specifications
Two-conductor TOPJOB S Push-in CAGE CLAMP core range. Blue is a housing identification option. Strip accessories have independent quantities; end stops and plates are counted per strip, not per terminal.
Accessories & related parts
2004-1207 — specifications & documents
TOPJOB S 2004, 4 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 6.2 mm wide.
| Range | TOPJOB S 2004 |
|---|---|
| Nominal cross-section | 4 mm² |
| Function | Protective earth |
| Colour | Green/yellow |
| Connection | Push-in CAGE CLAMP |
| Connection points | 2 |
| Potentials | 1 |
| Levels | 1 |
| Width along DIN rail | 6.2 mm |
| Height across DIN rail | 52.3 mm |
| Depth above DIN rail | 32.9 mm |
| Mounting rail | DIN 35 × 7.5 or 35 × 15 mm |
| Solid conductor range | 0.5–6 mm² |
| Strip length | 11–13 mm |
Related parts
- 2004-1291 TOPJOB S 2004 end and intermediate plate, grey, 1 mm thick. For two-conductor 2004-120x terminal profile.
- 2004-1292 TOPJOB S 2004 end and intermediate plate, orange, 1 mm thick. For two-conductor 2004-120x terminal profile.
- 2004-402 TOPJOB S 2004 insulated push-in bridge, 2 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-403 TOPJOB S 2004 insulated push-in bridge, 3 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-404 TOPJOB S 2004 insulated push-in bridge, 4 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-405 TOPJOB S 2004 insulated push-in bridge, 5 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-410 TOPJOB S 2004 insulated push-in bridge, 10 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 249-116 Screwless DIN-35 end stop, grey, 6 mm wide. Secures the terminal strip on 35 × 7.5 or 35 × 15 mm rail.
- 249-117 Screwless DIN-35 end stop, grey, 10 mm wide. Secures the terminal strip on 35 × 7.5 or 35 × 15 mm rail.
- 793-5501 White WMB marker card; 10 strips of 10 markers. Stretchable 5–5.2 mm; separate individual markers for wider terminals.
- 2009-110 White plain marking strip, 11 mm wide, 50 m reel. For TOPJOB S centre marking and compatible WAGO printing equipment.
- 210-720 Operating tool, type 2, 3.5 × 0.5 mm blade with partially insulated shaft. For compatible terminal operating slots.
- 2009-193 Grey group marker carrier for TOPJOB S terminal strip identification.
- 2009-174 Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A.
- 210-504 Slotted galvanised steel DIN rail, 35 × 7.5 mm, 1 mm thick, 2 m long, to EN 60715.
- 210-197 Slotted galvanised steel DIN rail, 35 × 15 mm, 1.5 mm thick, 2 m long, similar to EN 60715.
