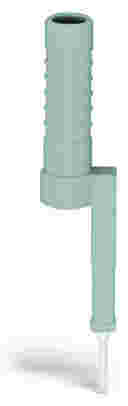

WAGO Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A
2009-174
Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A.
- Application
- Terminals · assembly accessories
- Accessory type
- Test accessories
- Option
- 4 mm test plug adapter
Product specification
2009-174
Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
2009-174 — specifications & documents
Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A.
| Accessory type | Test accessories |
|---|---|
| Test plug diameter | 4 mm |
| Rated test current | 10 A |
Fits these parts
- 2002-1201 TOPJOB S 2002, 2.5 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 5.2 mm wide.
- 2002-1204 TOPJOB S 2002, 2.5 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 5.2 mm wide.
- 2002-1207 TOPJOB S 2002, 2.5 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 5.2 mm wide.
- 2004-1201 TOPJOB S 2004, 4 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 6.2 mm wide.
- 2004-1204 TOPJOB S 2004, 4 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 6.2 mm wide.
- 2004-1207 TOPJOB S 2004, 4 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 6.2 mm wide.
- 2006-1201 TOPJOB S 2006, 6 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 7.5 mm wide.
- 2006-1204 TOPJOB S 2006, 6 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 7.5 mm wide.
- 2006-1207 TOPJOB S 2006, 6 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 7.5 mm wide.
- 2010-1201 TOPJOB S 2010, 10 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 10 mm wide.
- 2010-1204 TOPJOB S 2010, 10 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 10 mm wide.
- 2010-1207 TOPJOB S 2010, 10 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 10 mm wide.
- 2016-1201 TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 12 mm wide.
- 2016-1204 TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 12 mm wide.
- 2016-1207 TOPJOB S 2016, 16 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 12 mm wide.
