WAGO TOPJOB S 2016
2016-1204

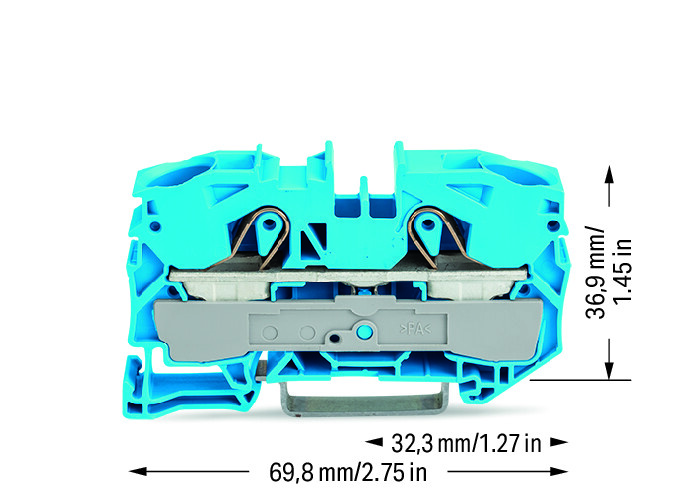

TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 12 mm wide.
- Nominal cross-section
- 16 mm²
- Function
- Feed-through
- Colour
- Blue
Product specification
2016-1204
TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 12 mm wide.
Dimensions & specifications
Two-conductor TOPJOB S Push-in CAGE CLAMP core range. Blue is a housing identification option. Strip accessories have independent quantities; end stops and plates are counted per strip, not per terminal.
Accessories & related parts
2016-1204 — specifications & documents
TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 12 mm wide.
| Range | TOPJOB S 2016 |
|---|---|
| Nominal cross-section | 16 mm² |
| Function | Feed-through |
| Colour | Blue |
| Connection | Push-in CAGE CLAMP |
| Connection points | 2 |
| Potentials | 1 |
| Levels | 1 |
| Width along DIN rail | 12 mm |
| Height across DIN rail | 69.8 mm |
| Depth above DIN rail | 36.9 mm |
| Mounting rail | DIN 35 × 7.5 or 35 × 15 mm |
| Solid conductor range | 0.5–16 mm² |
| Strip length | 18–20 mm |
| Rated current (IEC, nominal cross-section) | 76 A |
| Nominal voltage (III/3) | 800 V |
| Identification | Blue feed-through housing; circuit function is defined by the panel design. |
Related parts
- 2016-1291 TOPJOB S 2016 end and intermediate plate, grey, 1 mm thick. For two-conductor 2016-120x terminal profile.
- 2016-1292 TOPJOB S 2016 end and intermediate plate, orange, 1 mm thick. For two-conductor 2016-120x terminal profile.
- 2016-402 TOPJOB S 2016 insulated push-in bridge, 2 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-403 TOPJOB S 2016 insulated push-in bridge, 3 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-404 TOPJOB S 2016 insulated push-in bridge, 4 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-405 TOPJOB S 2016 insulated push-in bridge, 5 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 249-116 Screwless DIN-35 end stop, grey, 6 mm wide. Secures the terminal strip on 35 × 7.5 or 35 × 15 mm rail.
- 249-117 Screwless DIN-35 end stop, grey, 10 mm wide. Secures the terminal strip on 35 × 7.5 or 35 × 15 mm rail.
- 793-5501 White WMB marker card; 10 strips of 10 markers. Stretchable 5–5.2 mm; separate individual markers for wider terminals.
- 2009-110 White plain marking strip, 11 mm wide, 50 m reel. For TOPJOB S centre marking and compatible WAGO printing equipment.
- 210-721 Operating tool, type 3, 5.5 × 0.8 mm blade with partially insulated shaft. For compatible terminal operating slots.
- 2009-193 Grey group marker carrier for TOPJOB S terminal strip identification.
- 2009-174 Grey test plug adapter for 4 mm test plugs and compatible TOPJOB S rail terminals. Maximum nominal test current 10 A.
- 210-504 Slotted galvanised steel DIN rail, 35 × 7.5 mm, 1 mm thick, 2 m long, to EN 60715.
- 210-197 Slotted galvanised steel DIN rail, 35 × 15 mm, 1.5 mm thick, 2 m long, similar to EN 60715.
