Rittal Products
AX wall mounted and VX SE floor standing enclosures, fans, filters and cooling units.
AX Wall-mounted Enclosures
44 sheet-steel sizes · Mounting plate included
Browse range
VX SE Floor-standing Enclosures
19 sheet-steel sizes · Matching plinths and fittings
Browse range

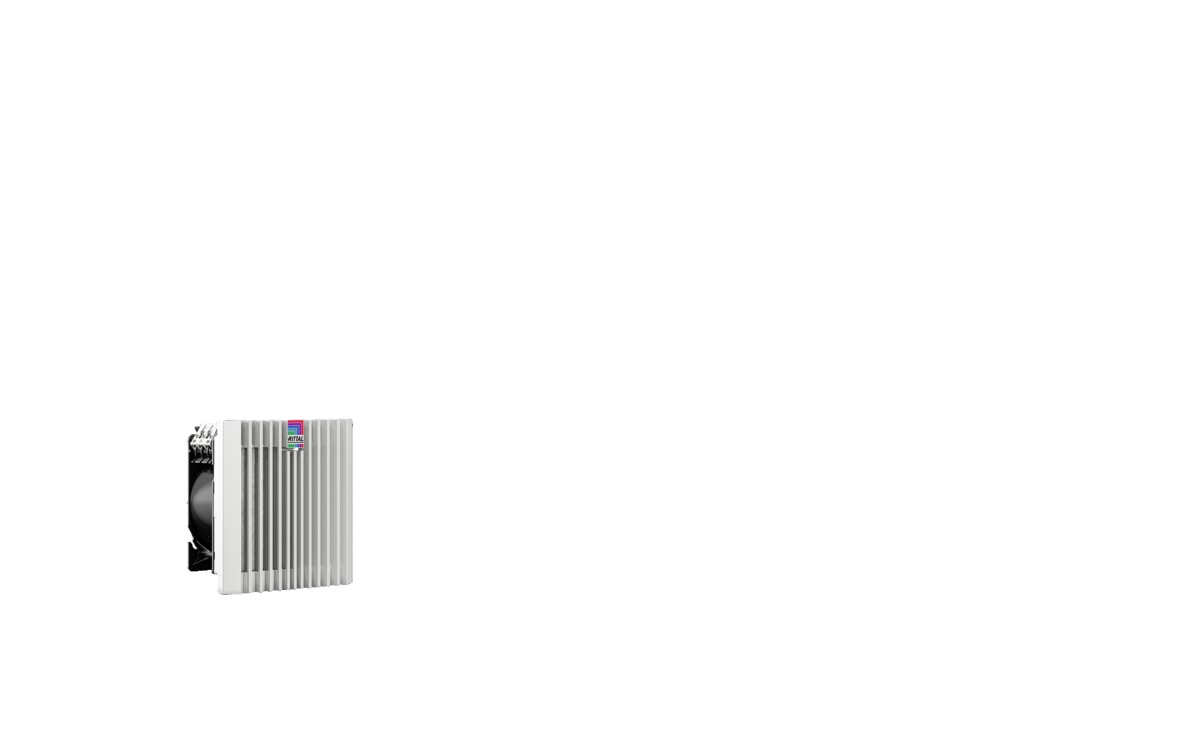

Fans & filters
Choose cut-out size · Matching outlet filters and replacement media
Browse range
Air conditioning
Blue e+ · Cooling capacity and voltage selection
Browse rangeSearch part numbers & specifications
Open to search 145 parts.
Browse part numbers (145)
- 1033000AX sheet-steel enclosure, 300 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1034000AX sheet-steel enclosure, 300 × 400 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1031000AX sheet-steel enclosure, 380 × 300 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1380000AX sheet-steel enclosure, 380 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1038000AX sheet-steel enclosure, 380 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1338000AX sheet-steel enclosure, 380 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1045000AX sheet-steel enclosure, 400 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1037000AX sheet-steel enclosure, 400 × 800 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1050000AX sheet-steel enclosure, 500 × 500 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1350000AX sheet-steel enclosure, 500 × 500 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1057000AX sheet-steel enclosure, 500 × 700 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1039000AX sheet-steel enclosure, 600 × 380 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1339000AX sheet-steel enclosure, 600 × 380 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1060000AX sheet-steel enclosure, 600 × 600 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1054000AX sheet-steel enclosure, 600 × 600 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1360000AX sheet-steel enclosure, 600 × 600 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1076000AX sheet-steel enclosure, 600 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1376000AX sheet-steel enclosure, 600 × 760 × 350 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1058000AX sheet-steel enclosure, 600 × 800 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1059000AX sheet-steel enclosure, 600 × 800 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1090000AX sheet-steel enclosure, 600 × 1000 × 250 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1091000AX sheet-steel enclosure, 600 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1260000AX sheet-steel enclosure, 600 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1261000AX sheet-steel enclosure, 600 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1077000AX sheet-steel enclosure, 760 × 760 × 210 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1073000AX sheet-steel enclosure, 760 × 760 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1055000AX sheet-steel enclosure, 800 × 600 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1180000AX sheet-steel enclosure, 800 × 1000 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1181000AX sheet-steel enclosure, 800 × 1000 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1280000AX sheet-steel enclosure, 800 × 1200 × 300 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1281000AX sheet-steel enclosure, 800 × 1200 × 400 mm (W × H × D), 1 door(s), IP66. Mounting plate and gland plates included.
- 1100000AX sheet-steel enclosure, 1000 × 760 × 210 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1130000AX sheet-steel enclosure, 1000 × 760 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1110000AX sheet-steel enclosure, 1000 × 1000 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1213000AX sheet-steel enclosure, 1000 × 1200 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1214000AX sheet-steel enclosure, 1000 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1114000AX sheet-steel enclosure, 1000 × 1400 × 300 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1115000AX sheet-steel enclosure, 1000 × 1400 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 1116000AX sheet-steel enclosure, 1200 × 1200 × 400 mm (W × H × D), 2 door(s), IP55. Mounting plate and gland plates included.
- 5820600VX SE sheet-steel enclosure, 600 × 1800 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5830600VX SE sheet-steel enclosure, 600 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5821600VX SE sheet-steel enclosure, 600 × 2000 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5822600VX SE sheet-steel enclosure, 800 × 1800 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5831600VX SE sheet-steel enclosure, 800 × 1800 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5823600VX SE sheet-steel enclosure, 800 × 2000 × 300 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5832600VX SE sheet-steel enclosure, 800 × 2000 × 400 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5833600VX SE sheet-steel enclosure, 800 × 2000 × 500 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
- 5834600VX SE sheet-steel enclosure, 800 × 2000 × 600 mm (W × H × D), 1 door(s), IP55. Mounting plate and gland plates included.
Rittal range information
AX wall mounted and VX SE floor standing enclosures, fans, filters and cooling units.
Browse the listed ranges to choose the specification and exact product reference. Product documents and matched accessories are shown on the relevant product pages.
