WAGO Products
TOPJOB S terminal blocks, jumpers, end plates, end stops and marking accessories.
Terminal blocks
2.5–16 mm² · Feed-through, blue and PE
Browse range
End plates
Choose terminal size and the matching end plates.
Browse range
End stops
Choose terminal size and the matching end stops.
Browse range
Jumper bars
Choose terminal size and the matching jumper bars.
Browse range

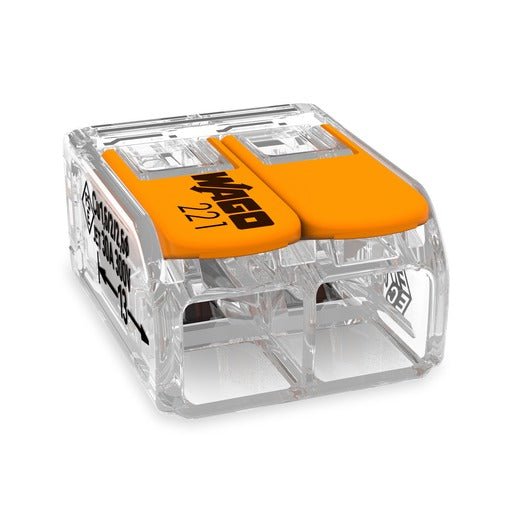

Wago lever connectors
221-412 · 221-413 · 221-415 · up to 4 mm²
Browse rangeSearch part numbers & specifications
Open to search 60 parts.
Browse part numbers (60)
- 2002-1201TOPJOB S 2002, 2.5 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 5.2 mm wide.
- 2002-1204TOPJOB S 2002, 2.5 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 5.2 mm wide.
- 2002-1207TOPJOB S 2002, 2.5 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 5.2 mm wide.
- 2004-1201TOPJOB S 2004, 4 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 6.2 mm wide.
- 2004-1204TOPJOB S 2004, 4 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 6.2 mm wide.
- 2004-1207TOPJOB S 2004, 4 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 6.2 mm wide.
- 2006-1201TOPJOB S 2006, 6 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 7.5 mm wide.
- 2006-1204TOPJOB S 2006, 6 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 7.5 mm wide.
- 2006-1207TOPJOB S 2006, 6 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 7.5 mm wide.
- 2010-1201TOPJOB S 2010, 10 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 10 mm wide.
- 2010-1204TOPJOB S 2010, 10 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 10 mm wide.
- 2010-1207TOPJOB S 2010, 10 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 10 mm wide.
- 2016-1201TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, grey. Push-in CAGE CLAMP, 12 mm wide.
- 2016-1204TOPJOB S 2016, 16 mm², two-conductor feed-through terminal, blue. Push-in CAGE CLAMP, 12 mm wide.
- 2016-1207TOPJOB S 2016, 16 mm², two-conductor PE terminal, green/yellow. Push-in CAGE CLAMP, 12 mm wide.
- 2002-1291TOPJOB S 2002 end and intermediate plate, grey, 0.8 mm thick. For two-conductor 2002-120x terminal profile.
- 2002-1292TOPJOB S 2002 end and intermediate plate, orange, 0.8 mm thick. For two-conductor 2002-120x terminal profile.
- 2002-402TOPJOB S 2002 insulated push-in bridge, 2 poles, light grey. 5.2 mm terminal pitch, 25 A nominal bridge current.
- 2002-403TOPJOB S 2002 insulated push-in bridge, 3 poles, light grey. 5.2 mm terminal pitch, 25 A nominal bridge current.
- 2002-404TOPJOB S 2002 insulated push-in bridge, 4 poles, light grey. 5.2 mm terminal pitch, 25 A nominal bridge current.
- 2002-405TOPJOB S 2002 insulated push-in bridge, 5 poles, light grey. 5.2 mm terminal pitch, 25 A nominal bridge current.
- 2002-410TOPJOB S 2002 insulated push-in bridge, 10 poles, light grey. 5.2 mm terminal pitch, 25 A nominal bridge current.
- 2004-1291TOPJOB S 2004 end and intermediate plate, grey, 1 mm thick. For two-conductor 2004-120x terminal profile.
- 2004-1292TOPJOB S 2004 end and intermediate plate, orange, 1 mm thick. For two-conductor 2004-120x terminal profile.
- 2004-402TOPJOB S 2004 insulated push-in bridge, 2 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-403TOPJOB S 2004 insulated push-in bridge, 3 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-404TOPJOB S 2004 insulated push-in bridge, 4 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-405TOPJOB S 2004 insulated push-in bridge, 5 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2004-410TOPJOB S 2004 insulated push-in bridge, 10 poles, light grey. 6.2 mm terminal pitch, 32 A nominal bridge current.
- 2006-1291TOPJOB S 2006 end and intermediate plate, grey, 1 mm thick. For two-conductor 2006-120x terminal profile.
- 2006-1292TOPJOB S 2006 end and intermediate plate, orange, 1 mm thick. For two-conductor 2006-120x terminal profile.
- 2006-402TOPJOB S 2006 insulated push-in bridge, 2 poles, light grey. 7.5 mm terminal pitch, 41 A nominal bridge current.
- 2006-403TOPJOB S 2006 insulated push-in bridge, 3 poles, light grey. 7.5 mm terminal pitch, 41 A nominal bridge current.
- 2006-404TOPJOB S 2006 insulated push-in bridge, 4 poles, light grey. 7.5 mm terminal pitch, 41 A nominal bridge current.
- 2006-405TOPJOB S 2006 insulated push-in bridge, 5 poles, light grey. 7.5 mm terminal pitch, 41 A nominal bridge current.
- 2010-1291TOPJOB S 2010 end and intermediate plate, grey, 1 mm thick. For two-conductor 2010-120x terminal profile.
- 2010-1292TOPJOB S 2010 end and intermediate plate, orange, 1 mm thick. For two-conductor 2010-120x terminal profile.
- 2010-402TOPJOB S 2010 insulated push-in bridge, 2 poles, light grey. 10 mm terminal pitch, 57 A nominal bridge current.
- 2010-403TOPJOB S 2010 insulated push-in bridge, 3 poles, light grey. 10 mm terminal pitch, 57 A nominal bridge current.
- 2010-404TOPJOB S 2010 insulated push-in bridge, 4 poles, light grey. 10 mm terminal pitch, 57 A nominal bridge current.
- 2010-405TOPJOB S 2010 insulated push-in bridge, 5 poles, light grey. 10 mm terminal pitch, 57 A nominal bridge current.
- 2016-1291TOPJOB S 2016 end and intermediate plate, grey, 1 mm thick. For two-conductor 2016-120x terminal profile.
- 2016-1292TOPJOB S 2016 end and intermediate plate, orange, 1 mm thick. For two-conductor 2016-120x terminal profile.
- 2016-402TOPJOB S 2016 insulated push-in bridge, 2 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-403TOPJOB S 2016 insulated push-in bridge, 3 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-404TOPJOB S 2016 insulated push-in bridge, 4 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 2016-405TOPJOB S 2016 insulated push-in bridge, 5 poles, light grey. 12 mm terminal pitch, 76 A nominal bridge current.
- 249-116Screwless DIN-35 end stop, grey, 6 mm wide. Secures the terminal strip on 35 × 7.5 or 35 × 15 mm rail.
WAGO range information
TOPJOB S terminal blocks, jumpers, end plates, end stops and marking accessories.
Browse the listed ranges to choose the specification and exact product reference. Product documents and matched accessories are shown on the relevant product pages.
