Distribution Blocks
Choose the number of poles, IEC current rating and connection layout. nVent ERIFLEX distribution blocks include covers and mount on DIN rail or directly to the panel.
Product specification
563820

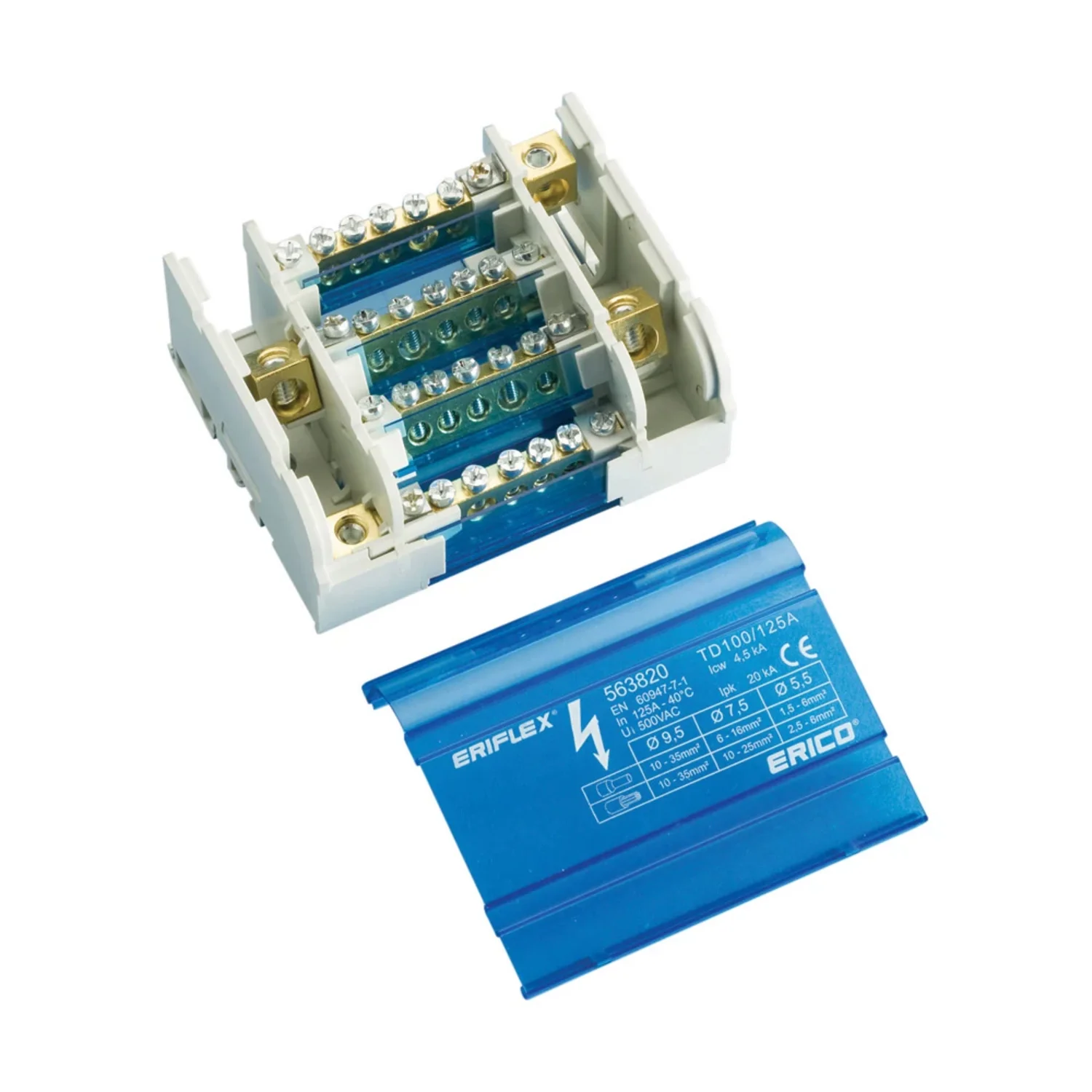

TD-100-125A 4-pole distribution block, 125 A IEC, 1 incoming connection and 6 outgoing connections per pole.
Dimensions & specifications
Connection counts are per pole. Capacities for compact-stranded and ferruled conductors are shown separately. Covers are included; compatible bridges appear with the selected block.
Accessories & related parts
Part numbers & documents
- 563820 TD-100-125A 4-pole distribution block, 125 A IEC, 1 incoming connection and 6 outgoing connections per pole.
- 563830 TD-100-125AL 4-pole distribution block, 125 A IEC, 1 incoming connection and 10 outgoing connections per pole.
- 563840 TD-100-125ALL 4-pole distribution block, 125 A IEC, 1 incoming connection and 14 outgoing connections per pole.
- 563200 TD-160A 4-pole distribution block, 160 A IEC, 1 incoming connection and 11 outgoing connections per pole.
- 563990 TD-160AL 4-pole distribution block, 160 A IEC, 1 incoming connection and 11 outgoing connections per pole.
- 563995 TDL-400A 4-pole distribution block, 400 A IEC, 1 incoming connection and 14 outgoing connections per pole.
