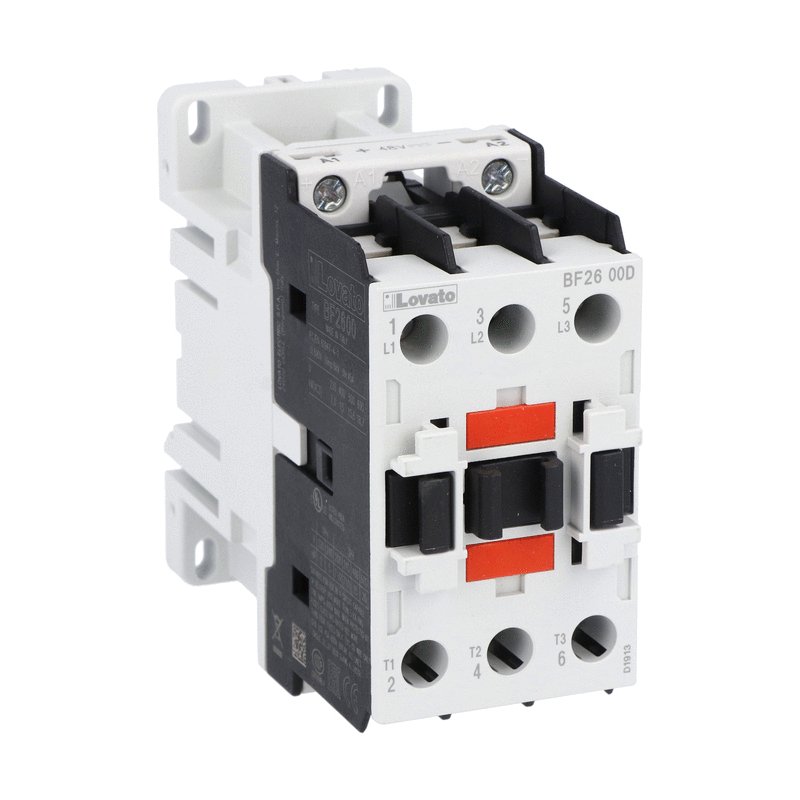

Lovato BF 3-pole contactor
BF2600D024
BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 24 V DC coil; no built-in auxiliary contacts.
- Motor rating
- 13 kW
- Frame
- BF26
- Coil
- 24 V DC
Product specification
BF2600D024
BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 24 V DC coil; no built-in auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
BF2600D024 — specifications & documents
BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 24 V DC coil; no built-in auxiliary contacts.
| Motor rating at 400 V | 13 kW |
|---|---|
| Rated current (AC-3) | 26 A |
| Frame | BF26 |
| Coil voltage | 24 V DC |
| Coil frequency | DC |
| Poles | 3 |
| Supplied auxiliary contacts | None |
| Mounting | Screw / DIN rail 35mm |
| Connection | Screw terminals |
