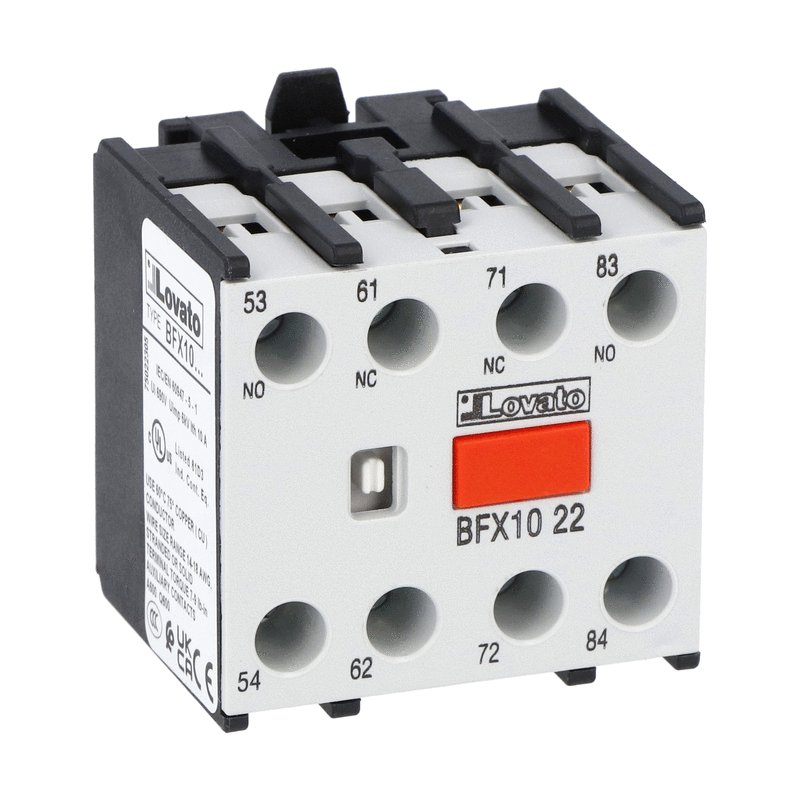

Lovato BF front-mounted auxiliary contact block
BFX1022
BF front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals.
- Application
- Lovato contactors
- Accessory type
- Auxiliary contact block
- Option
- 2 NO + 2 NC
Product specification
BFX1022
BF front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
BFX1022 — specifications & documents
BF front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals.
| Contacts | 2 NO + 2 NC |
|---|---|
| Mounting | Front centre |
| Compatible contactors | BF09–BF150 |
| Connection | Screw terminals |
| Assembly limit | One front-centre auxiliary block per contactor |
Fits these parts
- BF0910A024 BF 3-pole contactor, 4.2 kW at 400 V AC-3, 9 A. 24 V AC coil; 1NO auxiliary contact.
- BF0910A110 BF 3-pole contactor, 4.2 kW at 400 V AC-3, 9 A. 110 V AC coil; 1NO auxiliary contact.
- BF0910A230 BF 3-pole contactor, 4.2 kW at 400 V AC-3, 9 A. 230 V AC coil; 1NO auxiliary contact.
- BF0910D024 BF 3-pole contactor, 4.2 kW at 400 V AC-3, 9 A. 24 V DC coil; 1NO auxiliary contact.
- BF1210A024 BF 3-pole contactor, 5.7 kW at 400 V AC-3, 12 A. 24 V AC coil; 1NO auxiliary contact.
- BF1210A110 BF 3-pole contactor, 5.7 kW at 400 V AC-3, 12 A. 110 V AC coil; 1NO auxiliary contact.
- BF1210A230 BF 3-pole contactor, 5.7 kW at 400 V AC-3, 12 A. 230 V AC coil; 1NO auxiliary contact.
- BF1210D024 BF 3-pole contactor, 5.7 kW at 400 V AC-3, 12 A. 24 V DC coil; 1NO auxiliary contact.
- BF1810A024 BF 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V AC coil; 1NO auxiliary contact.
- BF1810A110 BF 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 110 V AC coil; 1NO auxiliary contact.
- BF1810A230 BF 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 230 V AC coil; 1NO auxiliary contact.
- BF1810D024 BF 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V DC coil; 1NO auxiliary contact.
- BF2510A024 BF 3-pole contactor, 12.5 kW at 400 V AC-3, 25 A. 24 V AC coil; 1NO auxiliary contact.
- BF2510A110 BF 3-pole contactor, 12.5 kW at 400 V AC-3, 25 A. 110 V AC coil; 1NO auxiliary contact.
- BF2510A230 BF 3-pole contactor, 12.5 kW at 400 V AC-3, 25 A. 230 V AC coil; 1NO auxiliary contact.
- BF2510D024 BF 3-pole contactor, 12.5 kW at 400 V AC-3, 25 A. 24 V DC coil; 1NO auxiliary contact.
- BF2600A024 BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 24 V AC coil; no built-in auxiliary contacts.
- BF2600A110 BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 110 V AC coil; no built-in auxiliary contacts.
- BF2600A230 BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 230 V AC coil; no built-in auxiliary contacts.
- BF2600D024 BF 3-pole contactor, 13 kW at 400 V AC-3, 26 A. 24 V DC coil; no built-in auxiliary contacts.
- BF3200A024 BF 3-pole contactor, 16 kW at 400 V AC-3, 32 A. 24 V AC coil; no built-in auxiliary contacts.
- BF3200A110 BF 3-pole contactor, 16 kW at 400 V AC-3, 32 A. 110 V AC coil; no built-in auxiliary contacts.
- BF3200A230 BF 3-pole contactor, 16 kW at 400 V AC-3, 32 A. 230 V AC coil; no built-in auxiliary contacts.
- BF3200D024 BF 3-pole contactor, 16 kW at 400 V AC-3, 32 A. 24 V DC coil; no built-in auxiliary contacts.
- BF3800A024 BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V AC coil; no built-in auxiliary contacts.
- BF3800A110 BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 110 V AC coil; no built-in auxiliary contacts.
- BF3800A230 BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 230 V AC coil; no built-in auxiliary contacts.
- BF3800D024 BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; no built-in auxiliary contacts.
