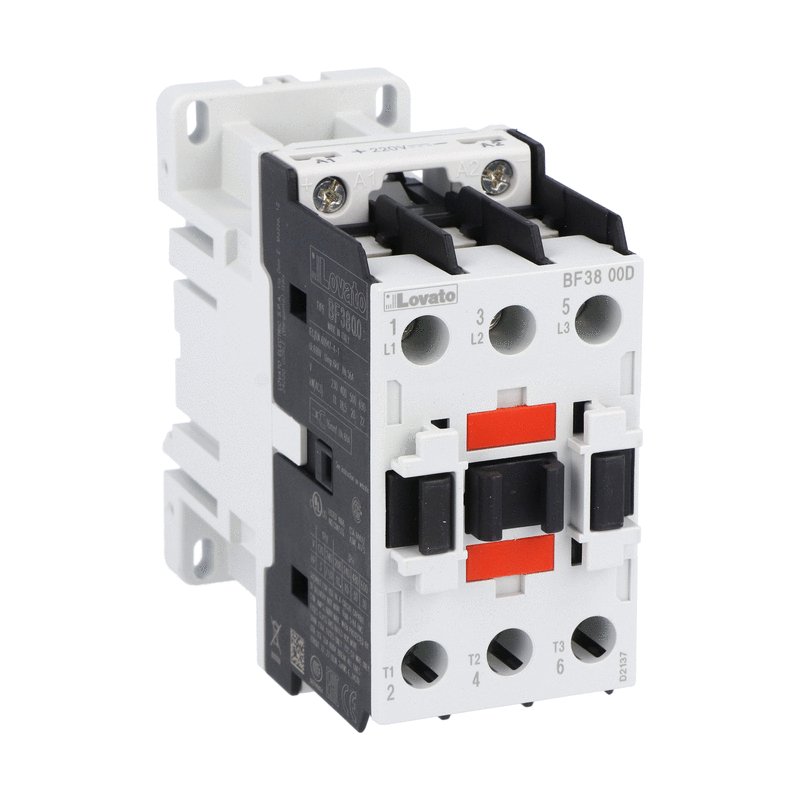

Lovato BF 3-pole contactor
BF3800D024
BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; no built-in auxiliary contacts.
- Motor rating
- 18.5 kW
- Frame
- BF38
- Coil
- 24 V DC
Product specification
BF3800D024
BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; no built-in auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
BF3800D024 — specifications & documents
BF 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; no built-in auxiliary contacts.
| Motor rating at 400 V | 18.5 kW |
|---|---|
| Rated current (AC-3) | 38 A |
| Frame | BF38 |
| Coil voltage | 24 V DC |
| Coil frequency | DC |
| Poles | 3 |
| Supplied auxiliary contacts | None |
| Mounting | Screw / DIN rail 35mm |
| Connection | Screw terminals |
Related parts
- RF380016 RF38 thermal overload relay, 0.1–0.16 A. Direct mounting on BF09–BF38 contactors.
- RF380025 RF38 thermal overload relay, 0.16–0.25 A. Direct mounting on BF09–BF38 contactors.
- RF380040 RF38 thermal overload relay, 0.25–0.4 A. Direct mounting on BF09–BF38 contactors.
- RF380063 RF38 thermal overload relay, 0.4–0.63 A. Direct mounting on BF09–BF38 contactors.
- RF380100 RF38 thermal overload relay, 0.63–1 A. Direct mounting on BF09–BF38 contactors.
- RF380160 RF38 thermal overload relay, 1–1.6 A. Direct mounting on BF09–BF38 contactors.
- RF380250 RF38 thermal overload relay, 1.6–2.5 A. Direct mounting on BF09–BF38 contactors.
- RF380400 RF38 thermal overload relay, 2.5–4 A. Direct mounting on BF09–BF38 contactors.
- RF380650 RF38 thermal overload relay, 4–6.5 A. Direct mounting on BF09–BF38 contactors.
- RF381000 RF38 thermal overload relay, 6.3–10 A. Direct mounting on BF09–BF38 contactors.
- RF381400 RF38 thermal overload relay, 9–14 A. Direct mounting on BF09–BF38 contactors.
- RF381800 RF38 thermal overload relay, 13–18 A. Direct mounting on BF09–BF38 contactors.
- RF382300 RF38 thermal overload relay, 17–23 A. Direct mounting on BF09–BF38 contactors.
- RF382500 RF38 thermal overload relay, 20–25 A. Direct mounting on BF09–BF38 contactors.
- RF383200 RF38 thermal overload relay, 24–32 A. Direct mounting on BF09–BF38 contactors.
- RF383800 RF38 thermal overload relay, 32–38 A. Direct mounting on BF09–BF38 contactors.
- BFX1011 BF front-mounted auxiliary contact block, 1 NO + 1 NC, screw terminals.
- BFX1022 BF front-mounted auxiliary contact block, 2 NO + 2 NC, screw terminals.
