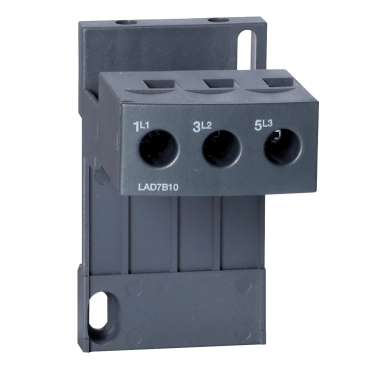

Schneider Electric LAD7B10 separate mounting adapter for LRD01–LRD35 thermal overload relays
LAD7B10
LAD7B10 separate mounting adapter for LRD01–LRD35 thermal overload relays, DIN rail or screw mounting.
- Application
- Thermal overload relays
- Accessory type
- Separate mounting adapter
- Option
- LRD01–LRD35
Product specification
LAD7B10
LAD7B10 separate mounting adapter for LRD01–LRD35 thermal overload relays, DIN rail or screw mounting.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
LAD7B10 — specifications & documents
LAD7B10 separate mounting adapter for LRD01–LRD35 thermal overload relays, DIN rail or screw mounting.
| Accessory type | Separate mounting adapter |
|---|---|
| Compatible relay | LRD01–LRD35 |
| Manufacturer order code | LAD7B10 |
| Mounting | DIN rail or screw fixing |
Fits these parts
- LRD01 TeSys Deca thermal overload relay, 0.1–0.16 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD02 TeSys Deca thermal overload relay, 0.16–0.25 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD03 TeSys Deca thermal overload relay, 0.25–0.4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD04 TeSys Deca thermal overload relay, 0.4–0.63 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD05 TeSys Deca thermal overload relay, 0.63–1 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD06 TeSys Deca thermal overload relay, 1–1.6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD07 TeSys Deca thermal overload relay, 1.6–2.5 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD08 TeSys Deca thermal overload relay, 2.5–4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD10 TeSys Deca thermal overload relay, 4–6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD12 TeSys Deca thermal overload relay, 5.5–8 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD14 TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD16 TeSys Deca thermal overload relay, 9–13 A, class 10A. Direct mounting on LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD21 TeSys Deca thermal overload relay, 12–18 A, class 10A. Direct mounting on LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD22 TeSys Deca thermal overload relay, 16–24 A, class 10A. Direct mounting on LC1D25, LC1D32, LC1D38 contactors.
- LRD32 TeSys Deca thermal overload relay, 23–32 A, class 10A. Direct mounting on LC1D25, LC1D32, LC1D38 contactors.
- LRD35 TeSys Deca thermal overload relay, 30–38 A, class 10A. Direct mounting on LC1D32, LC1D38 contactors.
