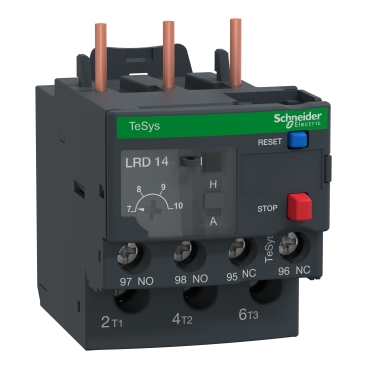

Schneider Electric TeSys Deca thermal overload relay
LRD14
TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- Range
- LRD
- Current setting
- 7–10 A
Product specification
LRD14
TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
Dimensions & specifications
Choose the relay that fits the selected contactor and set it to the motor nameplate current. Frame compatibility is shown on each product.
Accessories & related parts
LRD14 — specifications & documents
TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
| Setting range | 7–10 A |
|---|---|
| Range | LRD |
| Trip class | 10A |
| Contacts | 1 NO + 1 NC |
| Compatible contactors | LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 |
| Reset | Manual or automatic |
| Connection | Screw clamp terminals |
| Mounting | Direct to compatible contactor |
