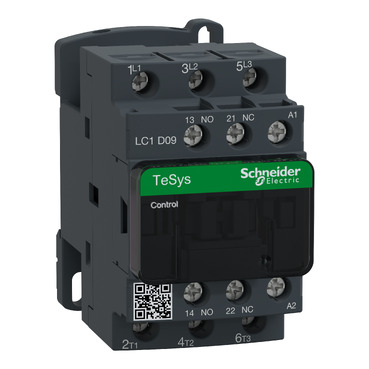

Schneider Electric TeSys Deca 3-pole contactor
LC1D09P7
TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- Motor rating
- 4 kW
- Coil
- 230 V AC
Product specification
LC1D09P7
TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
Dimensions & specifications
Motor ratings shown are for 400 V AC-3 / AC-3e. Select against the motor nameplate current; coil supply is a separate choice.
Accessories & related parts
LC1D09P7 — specifications & documents
TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
| Motor rating at 400 V | 4 kW |
|---|---|
| Rated current (AC-3) | 9 A |
| Frame | LC1D09 |
| Coil voltage | 230 V AC |
| Coil frequency | 50/60 Hz |
| Poles | 3 |
| Supplied auxiliary contacts | 1 NO + 1 NC |
| Connection | Screw clamp terminals |
| Mounting | 35 mm DIN rail or screw fixing |
| Coil suppression | Optional external suppressor |
Related parts
- LRD01 TeSys Deca thermal overload relay, 0.1–0.16 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD02 TeSys Deca thermal overload relay, 0.16–0.25 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD03 TeSys Deca thermal overload relay, 0.25–0.4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD04 TeSys Deca thermal overload relay, 0.4–0.63 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD05 TeSys Deca thermal overload relay, 0.63–1 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD06 TeSys Deca thermal overload relay, 1–1.6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD07 TeSys Deca thermal overload relay, 1.6–2.5 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD08 TeSys Deca thermal overload relay, 2.5–4 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD10 TeSys Deca thermal overload relay, 4–6 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD12 TeSys Deca thermal overload relay, 5.5–8 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LRD14 TeSys Deca thermal overload relay, 7–10 A, class 10A. Direct mounting on LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
- LADN11 TeSys Deca front auxiliary contact block, 1 NO + 1 NC, screw clamp terminals.
- LADN22 TeSys Deca front auxiliary contact block, 2 NO + 2 NC, screw clamp terminals.
