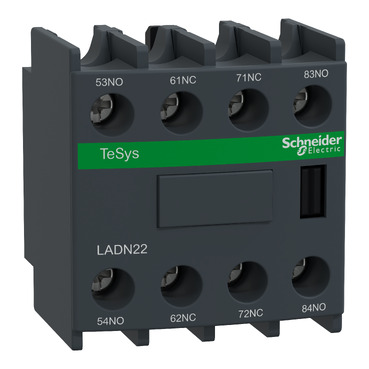

Schneider Electric TeSys Deca front auxiliary contact block
LADN22
TeSys Deca front auxiliary contact block, 2 NO + 2 NC, screw clamp terminals.
- Application
- Schneider contactors
- Accessory type
- Auxiliary contact block
- Option
- 2 NO + 2 NC
Product specification
LADN22
TeSys Deca front auxiliary contact block, 2 NO + 2 NC, screw clamp terminals.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
LADN22 — specifications & documents
TeSys Deca front auxiliary contact block, 2 NO + 2 NC, screw clamp terminals.
| Contacts | 2 NO + 2 NC |
|---|---|
| Mounting | Front |
| Compatible contactors | LC1D09–LC1D38, standard AC or DC coils |
| Connection | Screw clamp terminals |
| Assembly limit | One front auxiliary block per contactor |
Fits these parts
- LC1D09B7 TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09BD TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09F7 TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D09P7 TeSys Deca 3-pole contactor, 4 kW at 400 V AC-3, 9 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12B7 TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12BD TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12F7 TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D12P7 TeSys Deca 3-pole contactor, 5.5 kW at 400 V AC-3, 12 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18B7 TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18BD TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18F7 TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D18P7 TeSys Deca 3-pole contactor, 7.5 kW at 400 V AC-3, 18 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25B7 TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25BD TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25F7 TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D25P7 TeSys Deca 3-pole contactor, 11 kW at 400 V AC-3, 25 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32B7 TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32BD TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32F7 TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D32P7 TeSys Deca 3-pole contactor, 15 kW at 400 V AC-3, 32 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38B7 TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38BD TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 24 V DC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38F7 TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 110 V AC coil; 1 NO + 1 NC auxiliary contacts.
- LC1D38P7 TeSys Deca 3-pole contactor, 18.5 kW at 400 V AC-3, 38 A. 230 V AC coil; 1 NO + 1 NC auxiliary contacts.
