Product specification

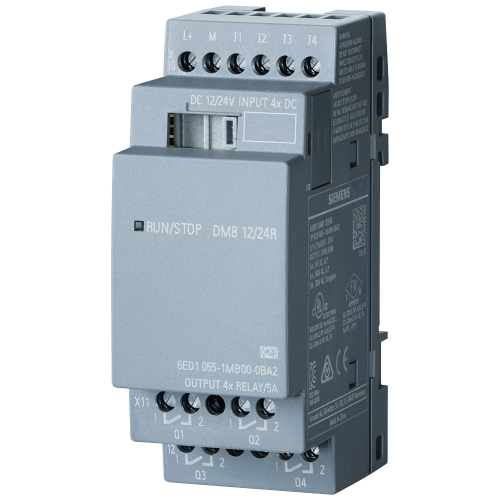

6ED1055-1MB00-0BA2
LOGO! 8 DM8 12/24R digital expansion module, 12/24 V DC, 4 digital inputs and 4 relay outputs. Two module widths.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
Part numbers & documents
- 6ED1055-1MB00-0BA2 LOGO! 8 DM8 12/24R digital expansion module, 12/24 V DC, 4 digital inputs and 4 relay outputs. Two module widths.
- 6ED1055-1FB00-0BA2 LOGO! 8 DM8 230R digital expansion module, 230 V, 4 digital inputs and 4 relay outputs. Two module widths.
- 6ED1055-1HB00-0BA2 LOGO! 8 DM8 24R digital expansion module, 24 V AC/DC, 4 digital inputs and 4 relay outputs. Two module widths.
- 6ED1055-1NB10-0BA2 LOGO! 8 DM16 24R digital expansion module, 24 V DC, 8 digital inputs and 8 relay outputs.
- 6ED1055-1CB10-0BA2 LOGO! 8 DM16 24 digital expansion module, 24 V DC, 8 digital inputs and 8 transistor outputs.
- 6ED1055-1FB10-0BA2 LOGO! 8 DM16 230R digital expansion module, 230 V AC/DC, 8 digital inputs and 8 relay outputs.
- 6ED1055-1MA00-0BA2 LOGO! 8 AM2 expansion module, 12/24 V DC. 2 inputs: 0–10 V or 0/4–20 mA.
- 6ED1055-1MD00-0BA2 LOGO! 8 AM2 RTD expansion module, 12/24 V DC. 2 inputs: Pt100 / Pt1000, 2- or 3-wire.
- 6ED1055-1MM00-0BA2 LOGO! 8 AM2 AQ expansion module, 24 V DC. 2 outputs: 0–10 V or 0/4–20 mA.
- 6ED1055-4MH08-0BA1 LOGO! 8 TDE external text display, 6 lines, 3 backlight colours and 2 Ethernet ports.
- 6ED1055-1CB00-0BA2 LOGO! 8 DM8 24 digital expansion, 24 V DC, 4 digital inputs and 4 transistor outputs.
- 6ED1058-0BA08-0YA1 LOGO!Soft Comfort V8.4 programming software, single licence for one installation, DVD delivery.
- 6GK7177-1MA20-0AA0 LOGO! CSM 12/24 compact Ethernet switch, 4 RJ45 ports, 10/100 Mbit/s, 12/24 V DC supply.
- 6XV1870-3QH10 Industrial Ethernet TP cord, RJ45 to RJ45, Cat6A S/FTP, 1 m.
- 6XV1870-3QH30 Industrial Ethernet TP cord, RJ45 to RJ45, Cat6A S/FTP, 3 m.
